C purlins in Miami

High-strength C steel purlins in Miami for efficient roof and wall support in commercial and industrial construction.

Steel Deck Institute Member
SDI Member · ANSI/SDI compliant

C Purlins for Miami job sites

General contractors and steel erectors in Miami rely on Miami Metal Deck for C Purlins on projects across Miami-Dade County and the South Florida region. Miami is close to our Miami Gardens facility, so stock items are available for same-day pickup and same-day delivery within South Florida.

Coastal conditions around Miami make corrosion protection a priority, and G90 galvanized steel is a common choice there. Our team checks the specified finish before we quote. Miami-Dade County falls within the Florida Building Code's High-Velocity Hurricane Zone (HVHZ). Send us the deck and attachment requirements on your drawings so we can supply the specified gauge and lengths.

Product guide

Product specifications for your Miami project

Compare profiles, dimensions, material options and applications to prepare your order. Select a product below to explore its technical details.

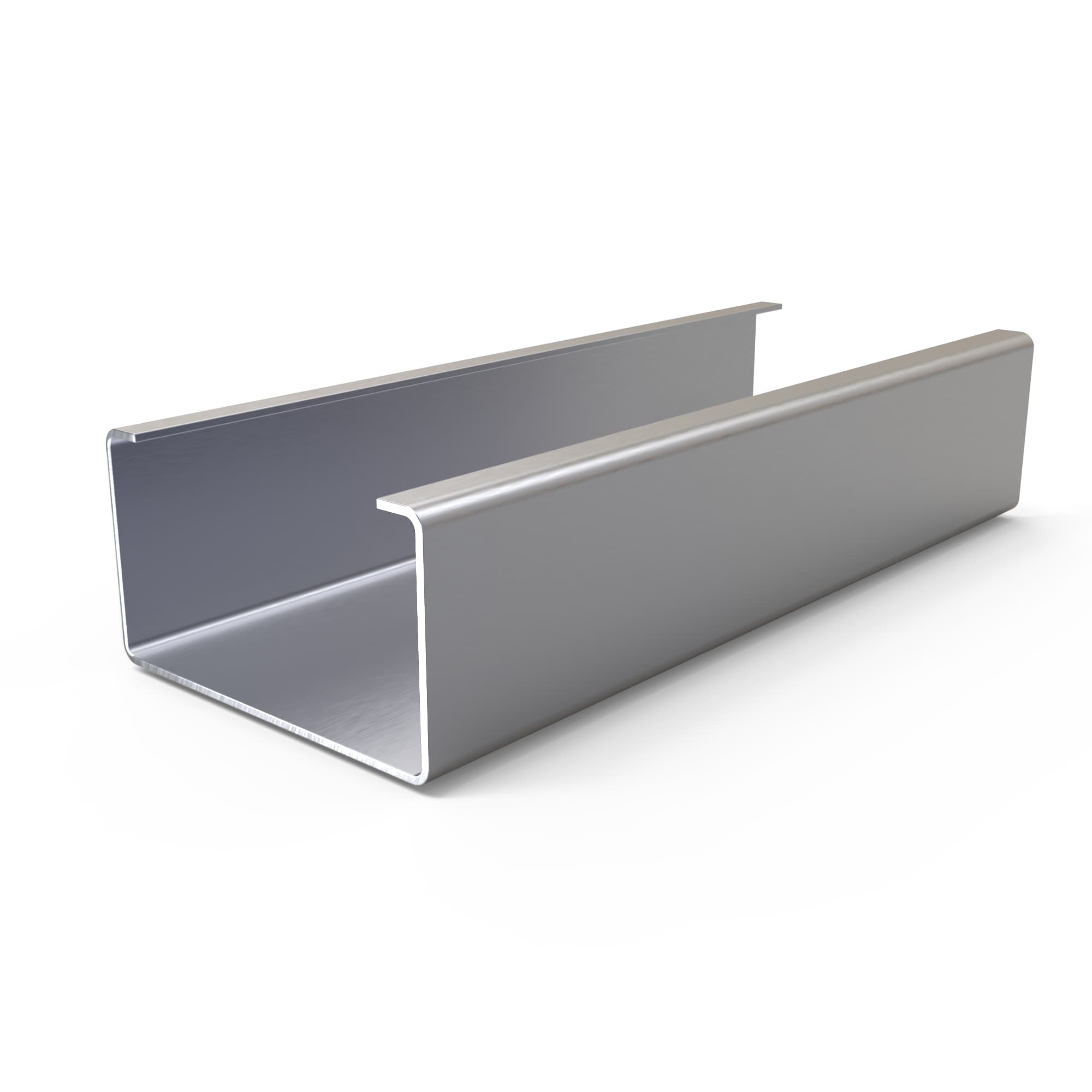

C Purlin

Roof and wall applications commonly use C purlin because it is both strong and light. This C-shaped section comes in depths and gauges from 12 GA to 20 GA, follows ANSI standards, and is finished with G60 or G90 galvanizing.

Dimensions and profile

C Purlin profile dimensions
C Purlin dimensions
PropertyDimension
Commercial NameC Purlin
Gauge12 to 20
Thickness0.039" to 0.094"
Weights1.2 to 6.78 lbs/ft
Size RangeC4x2 to C12x3
Web Depths4 to 12 inches
Flanges2 to 3 inches

C purlins span from C4x2 up to C12x3, with web depths between 4 and 12 inches. Gauges 12 to 20 correspond to thicknesses of 0.039" to 0.094" and weights from 1.2 to 6.78 lbs/ft. Flanges measure 2 to 3 inches, with lips up to 0.787 inches.

Sizes, thicknesses and weights

C Purlin available sizes
Purlin SizeThicknessWeight (lbs/ft)GaugeWebFlangeLip
C12x3-120.0946.78121230.787
C12x3-140.0755.4141230.787
C10x3-120.0945.48121030.787
C10x3-140.0754.37141030.709
C8x3-120.0944.8712830.787
C8x3-140.0753.8614830.709
C8x3-160.0593.0216830.591
C6x2.5-120.0943.831262.50.709
C6x2.5-140.0753.031462.50.669
C6x2.5-160.0592.411662.50.630
C6x2.5-180.0471.941862.50.591
C5x2-120.0943.1912520.630
C5x2-140.0752.514520.630
C5x2-160.0591.9916520.591
C5x2-180.0471.5918520.591
C5x2-200.0391.3520520.591
C4x2-200.0391.2020420.472
C4x2-180.0471.4118420.472
C4x2-160.0591.7616420.512
C4x2-140.0752.2114420.512
C4x2-120.0942.8212420.512

Gauges and thicknesses

C Purlin gauges
GaugeBare steel thickness (in)Weight (lbs/ft)Typical applications
120.094Up to 6.78 lbs/ftHeavy structural applications, large spans.
140.075Up to 5.4 lbs/ftStandard commercial structural support.
160.059Up to 3.02 lbs/ftMedium-duty roof and wall support.
180.047Up to 1.94 lbs/ftLight-duty applications.
200.039Up to 1.35 lbs/ftLight framing and small spans.

Gauges 12 through 20 let you match the purlin to the load and span. The heavier gauges (12 and 14) suit large structural applications and heavy roofing loads, while 18 and 20 gauge fit lighter framing and short spans where weight and cost matter most.

Finishes and coatings

C Purlin finishes
FinishDetails
Galvanized G60Zinc coating of 0.6 oz/ft². Recommended for general environments.
Galvanized G90Zinc coating of 0.9 oz/ft². Ideal for highly corrosive environments.
Prime-PaintedProvides a base coat for additional protection or paint adhesion.
Bare SteelUnfinished; typically for indoor use or controlled environments.

C purlins are supplied galvanized (G60 and G90) or prime-painted. G60 protects against corrosion in general environments, and G90 has a thicker zinc layer for coastal or high-humidity work. The prime-painted option supplies a base coat when additional coatings will follow.

Material and finish options

Our C purlins are rolled from high-strength 55 KSI steel. Pick a corrosion-resistant galvanized finish that meets ANSI standards, a painted option when appearance matters, or bare steel for custom applications. Every finish is meant to extend durability and performance.

Custom lengths

We cut to the length your job calls for, from 6′-0″ on smaller projects to 40′-0″ spans on larger builds. Custom lengths for Miami projects help the pieces fit properly and keep waste low.

C Purlin features

With a high strength-to-weight ratio, quick installation, and corrosion-resistant coatings, our C purlins fit industrial buildings, solar panels, agricultural structures, and commercial roof and wall systems. They are a practical pick for Miami projects.

High Strength-to-Weight Ratio

Strong load-bearing performance in a light section means less dead load on the structure and easier installation.

Easy and Fast Installation

Because the section is light and symmetrical, crews spend less time and face fewer complications in roof and wall systems.

Galvanized or Prime-Painted Finish

G60 and G90 galvanized finishes, along with prime-painted, improve durability and corrosion resistance.

Ideal for Custom Applications

Fits industrial buildings, solar panels, agricultural structures, and a variety of other commercial structures.

Compliance with SDI Standards

Steel Deck Institute and ANSI guidelines are met, supporting quality and code compliance.

Versatile Design Options

Choose from C4x2 to C12x3 sizes in gauges 12 to 20 to suit different structural needs and load requirements.

Installation and connections

Installation practices

  • C purlins should be installed perpendicular to the primary structural supports.
  • Anchor them at every support by bolt, weld, or self-drilling screw.
  • Purlins that overlap are secured with bolts or screws at 12" o.c.

Fasteners and attachments

  • Connect to primary frames with ½" diameter bolts.
  • Fasten along supports with #12 self-drilling screws at 6" o.c., and at overlaps with the same screws at 12" o.c.
  • Secure overlapping joints using #12 self-drilling screws at 12" o.c.

Confirm the profile, gauge, span, loads and connections against your project drawings and the applicable product load tables before ordering.

Applications

Roof and Wall Structural Framing

Roof and Wall Structural Framing

Commercial and industrial buildings use C purlins as solid support for roofing and wall cladding, in vented and non-vented structures alike.

Mezzanine and Racking Support

Mezzanine and Racking Support

Strong enough for mezzanine floors and industrial racking, they are a dependable option for warehouses and factories.

Standards and product documentation

Design and performance of the C purlin follow SDI (Steel Deck Institute) specifications, held to a high standard.

C Purlin questions

What is a C purlin, and what is it used for?

It is a cold-formed steel member with a 'C' shaped section. Its main job is structural support in the roofs and walls of industrial, commercial, and agricultural buildings.

How does a C purlin differ from a Z purlin?

The C purlin has a symmetrical 'C' section that gives strength and stability, and it works best in simple-span applications. A Z purlin has a 'Z' section that lets pieces overlap, which adds rigidity on longer continuous spans.

Which gauges and materials do C purlins come in?

Gauges 12 to 20 are available. They are made from galvanized steel (G60/G90) or prime-painted steel, depending on what the project requires.

What are the benefits of C purlins in Miami?

They offer high structural strength in a light profile, quick installation thanks to a standardized design, and flexibility across building types. Galvanizing adds corrosion resistance, and durability keeps maintenance and cost down.

Are custom C purlins available?

Yes. We make custom C purlins to order, with length (6' to 40'), gauge, and finish set to your project specifications.

Ordering made simple

C Purlins for Miami construction

Start with your plans or a takeoff. We review the profile, gauge, quantities and lengths, help with shop drawings when you need them, and come back with pricing and a delivery plan for Miami.

Send your project requirements

Helpful details for an accurate quote

  • Product profile or series, dimensions, gauge and specified finish.
  • Required quantities, sheet or member lengths, and project drawings.
  • Project address in Miami, delivery date and site access requirements.
  • Any specified load tables, connection details or supporting documentation.
