How Is Type B Deck Installed Over Steel Beams and Joists?
Type B is the roof deck, not the framing: it bears on steel beams or joists and is welded or screwed to each support in the pattern the engineer specifies, with sidelaps fastened as required. Miami contractors set sheets from shop drawings, confirm bearing, and fasten as they go to secure the deck against wind. We supply Type B cut to length with shop drawings.
Typical sequence on site
- Check that framing is plumb, aligned and ready to receive deck.

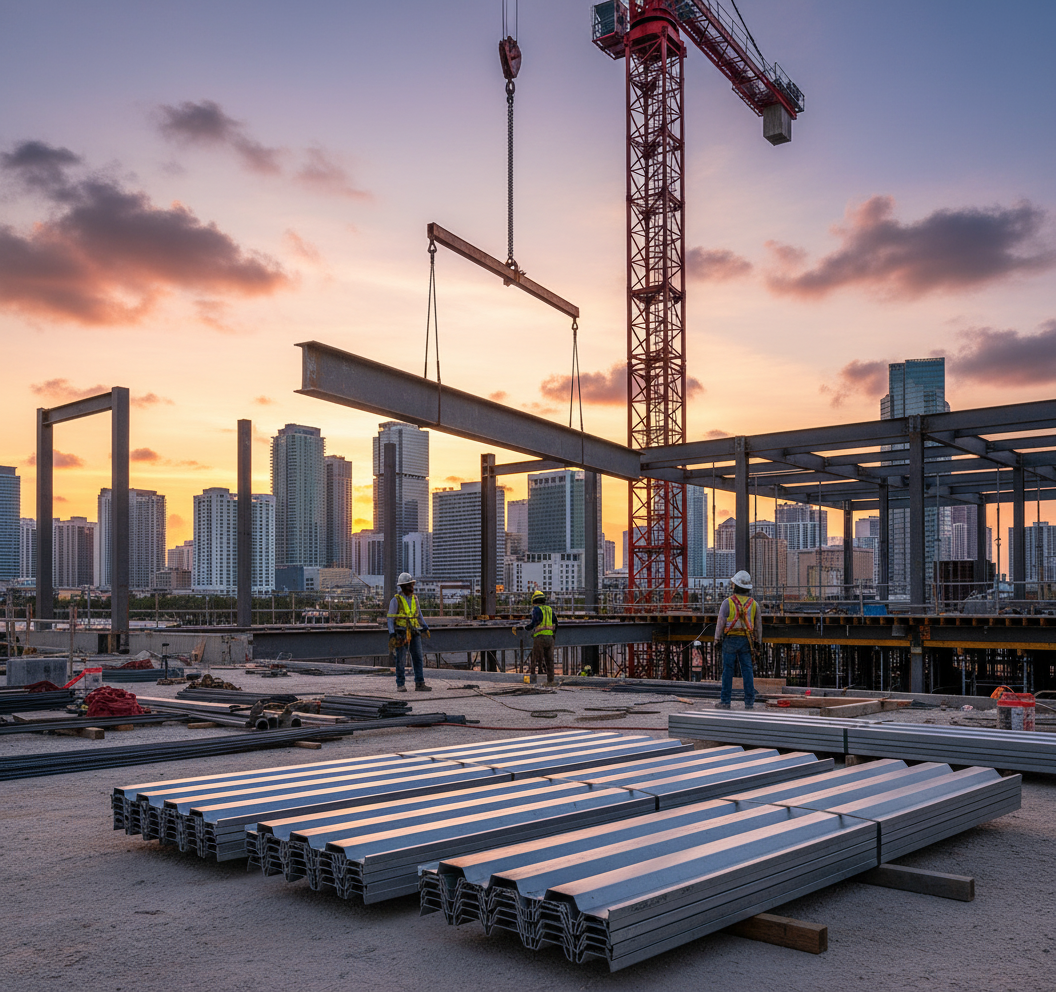

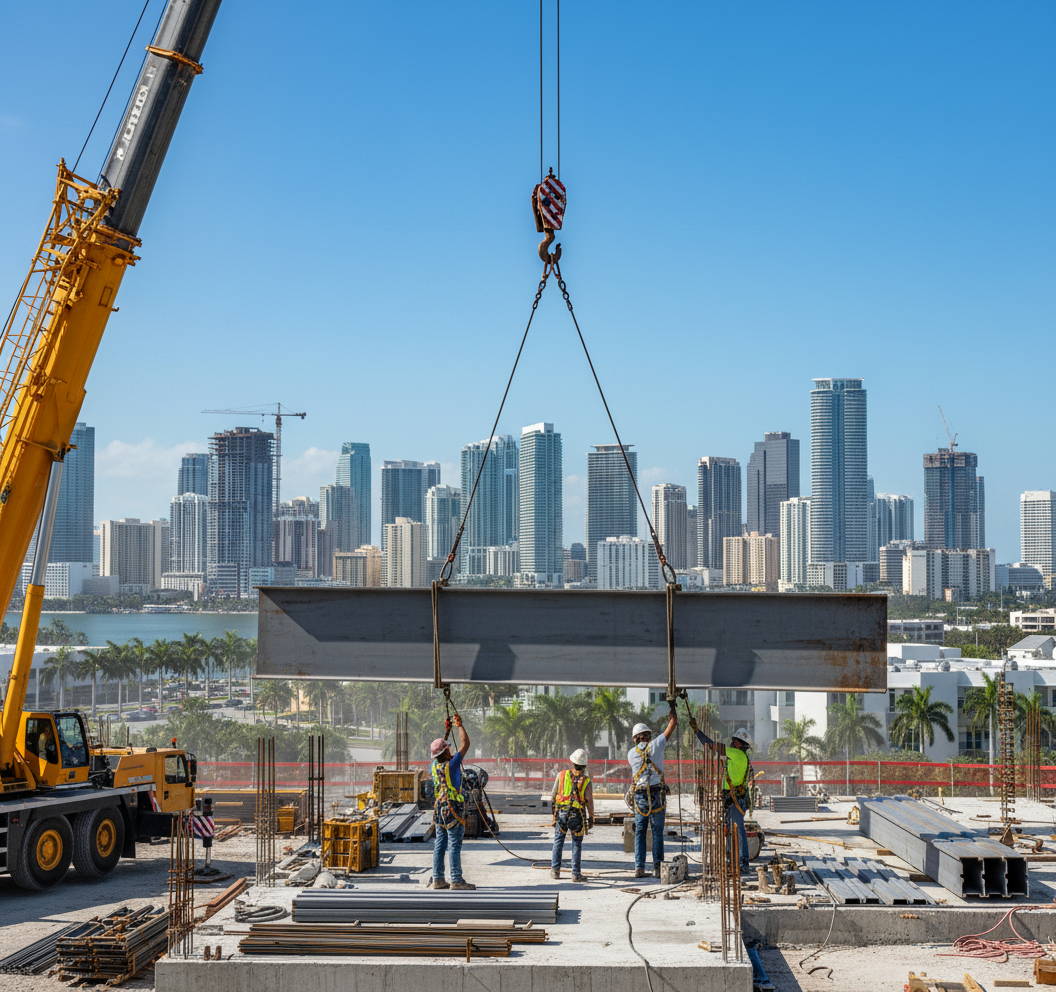

- Hoist bundles and land them over beams or joists, not mid-span, so construction loads stay within limits.
- Lay sheets per the shop drawings, with ribs perpendicular to the supports and proper end laps or butts.
- Fasten to supports per the specified pattern (36/3 to 36/7 layouts are common for 36" sheets).
- Fasten sidelaps: per our catalog, generally not required under 5'-0" spans; over 5'-0", at midspan or every 36", whichever is smaller.
- Secure sheets at the end of each shift; Miami weather can turn quickly.
Bearing and construction loads
End and interior bearing must be checked for web crippling; our catalog tabulates it for 1.5", 2" and 3" bearing lengths and notes that the uniform load tables do not include it. Respect construction-load spans until the deck is fully fastened. The engineer of record sets bearing and fastening.
Send the framing plans and we will prepare the takeoff, shop drawings and cutting list.
Related Questions
Do you supply the steel beams or joists?
We supply steel deck and purlins, and we source steel joists to SJI standards, including K, LH, DLH and KCS joists and joist girders. Structural beams come from the steel fabricator. Send the full package and we will quote what we supply.
Can workers walk on deck before it is fastened?
Unfastened deck can slide or roll and is a fall hazard. Crews should follow the erector's safety plan and fasten sheets promptly as they are placed. Construction loads should stay within the catalog's construction span limits. Fasten sheets before stacking materials on them.
