Type B Metal Deck for Florida Civic and Cultural Buildings
Libraries, museums, performing arts centers and civic halls in Florida often use 1.5" Type B roof deck. Because the ceilings are frequently left open, the deck becomes part of the architecture. Painted deck, a field topcoat, or the catalog's acoustic and cellular options can meet appearance and sound goals. We supply Type B in 22 to 16 gauge with detailed shop drawings.
When the deck is part of the design
- Finish: painted deck or a field topcoat over galvanized gives a uniform exposed ceiling.

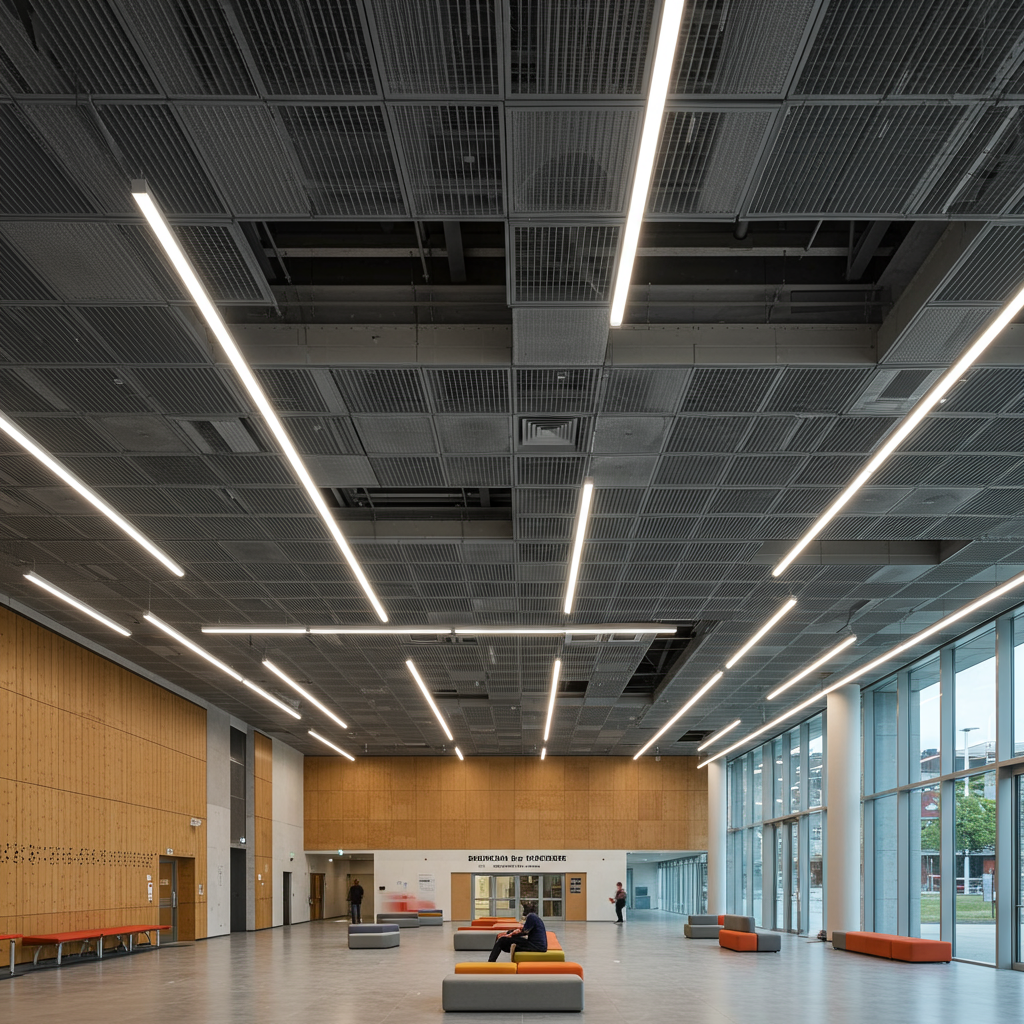

- Sound: acoustic deck absorbs sound in reading rooms, galleries and lobbies. Cellular deck gives a flat underside. Both are listed in the catalog as specialty options, so ask for availability.
- Layout: shop drawings set sheet direction and end laps so the ceiling reads clean.
- Collections: museums with strict humidity control still need a sound roof. Galvanized deck protects against condensation.
Spans and approvals
Large rooms like halls and atriums may span past Type B's range and need 3" Type N or deep deck. The engineer of record decides. Ask us for the documentation your permit requires.
Send the architectural reflected ceiling plan with the structural drawings, so our takeoff and quote reflect the exposed areas.
Related Questions
Does acoustic deck carry the same loads as standard Type B?
Not necessarily. Perforations in the webs can reduce section properties, and acoustic profiles have their own load tables. Have the engineer check spans against the acoustic product's published data before switching from standard deck. The fire-resistance listing may also differ, so confirm acoustic deck is allowed in the assembly.
Can fasteners be hidden on an exposed deck ceiling?
Fasteners go into the top flange over supports, so from below you mainly see the support lines. Weld marks show through on some finishes, so the specification may require touch-up before painting. Agree on the finish standard for exposed areas early.
