Type B Metal Deck Span Capabilities Under Florida Building Code Wind and Live Loads
We offer Type B metal decking for Florida projects, providing engineered span design, supply, and installation services that meet Florida Building Code and ASCE 7 wind and live load requirements with certified calculations and tested fastening systems.
Summary
- Span varies by gauge, profile and load
- Check FBC, ASCE 7 and manufacturer tables
- Miami Metal Deck provides engineered span solutions
Miami Metal Deck explains how Type B metal deck span capabilities are determined under Florida Building Code wind and live load requirements. If you are specifying or installing Type B metal deck in Florida, understanding how code wind loads, live loads, deck profile, gauge, support spacing and edge conditions affect spans is critical to a safe, code-compliant and cost-effective roof or floor system.
How Span Capability Is Determined

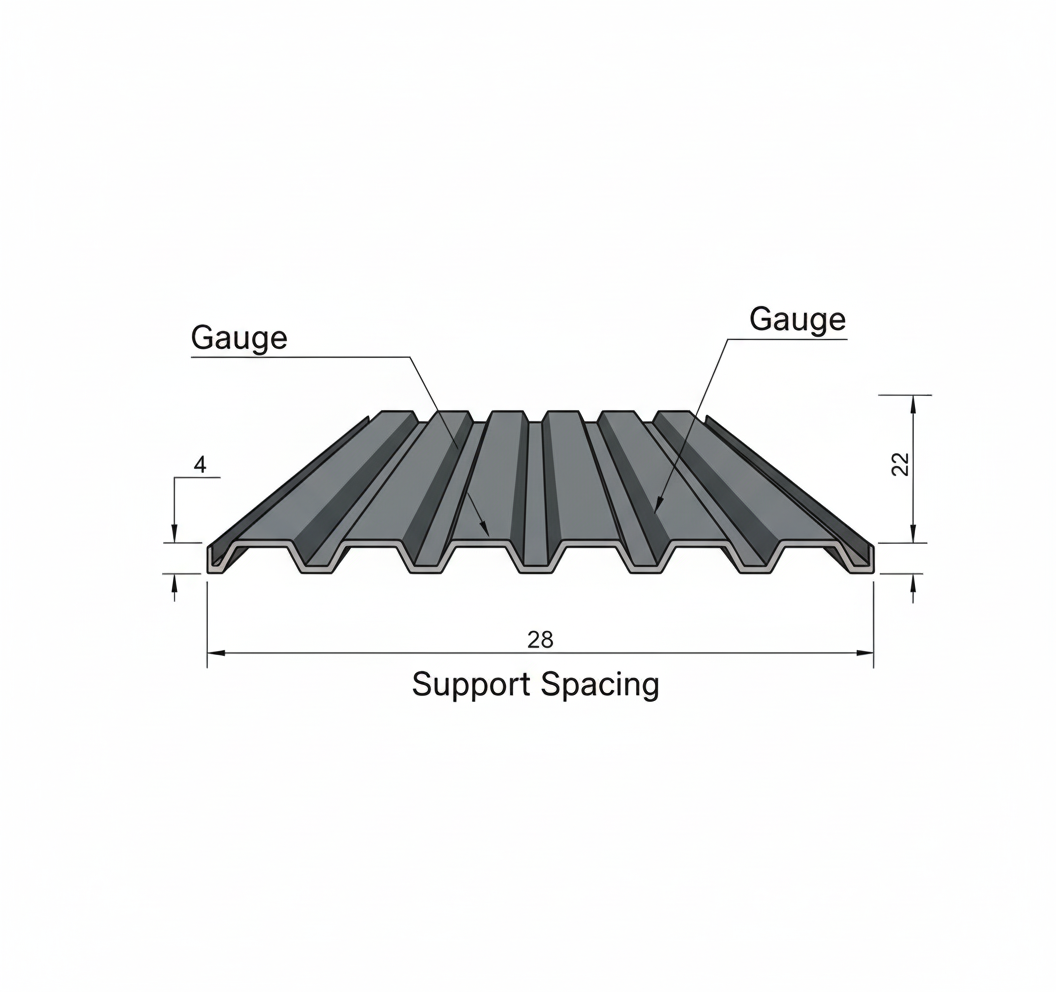

Span capability for Type B metal deck under Florida conditions is a function of code-required loads and the deck properties. The Florida Building Code uses ASCE 7 wind provisions and established live load criteria; designers then rely on manufacturer and Steel Deck Institute span tables, AISI design rules and FM or UL approvals to select a deck profile and gauge. Key influences include deck profile geometry, steel gauge, whether the deck is non-composite or composite, support spacing, diaphragm shear demands, fastener spacing and edge restraint or curb conditions.

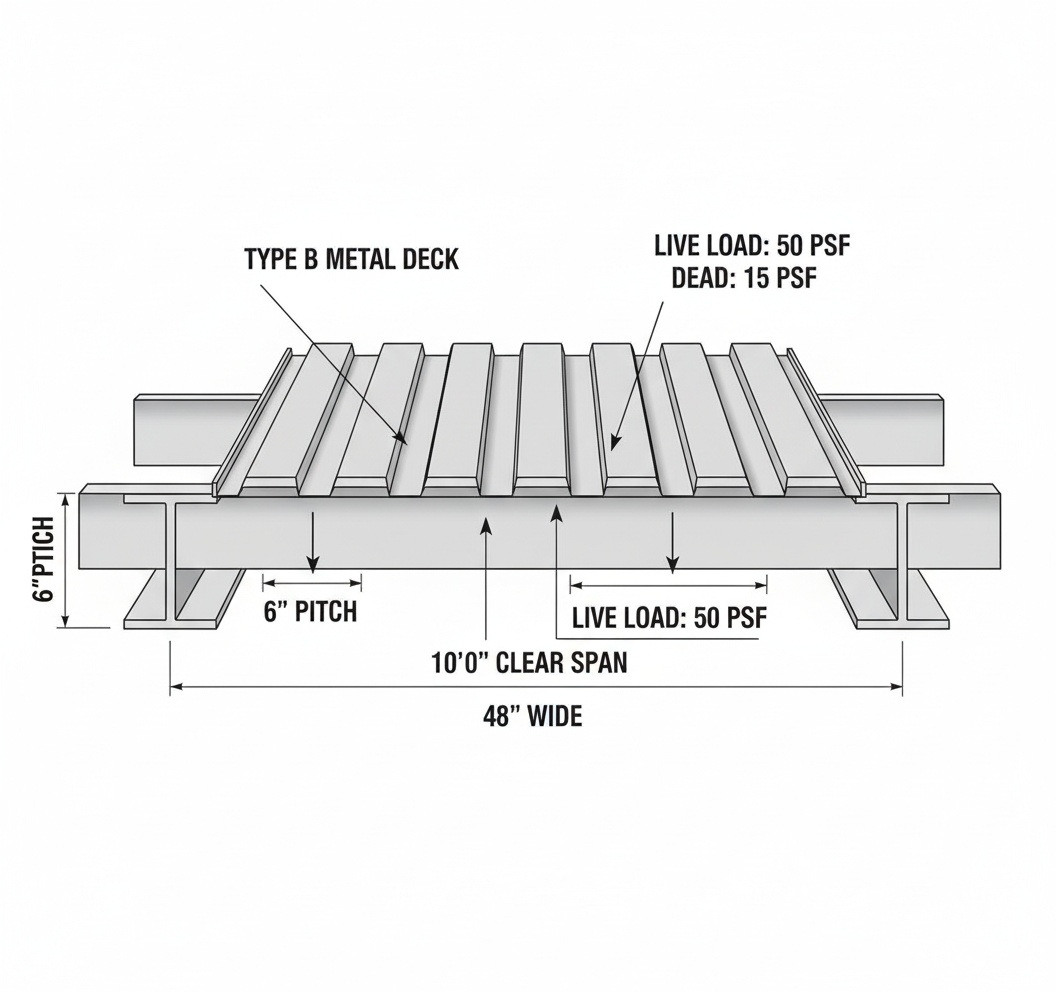

Typical ranges and real-world guidance: while exact allowable spans must come from manufacturer or SDI tables and project-specific calculations, common non-composite Type B roof decks in lighter gauges often span in the range of about 4 to 8 feet between supports under routine roof live loads and wind uplift controls. Heavier gauges or composite applications with a concrete topping can extend spans substantially, frequently reaching 8 to 20 feet or more depending on design live load, vibration criteria and uplift. Remember that Florida wind uplift pressures, roof configuration and parapet effects can reduce allowable spans compared with inland, lower-wind regions. Always verify with stamped calculations for your building and site wind exposure.
Design Considerations for Florida Wind and Live Loads
Design must address both gravity live loads and wind uplift simultaneously. For roofs in Florida, wind uplift controls fastener patterns, edge conditions, and diaphragm action more than gravity span limits in many cases. Use ASCE 7 wind pressures for your risk category and exposure, apply the correct uplift coefficients, and then check manufacturer uplift tables or perform a plate analysis. In addition consider secondary effects: ponding loads on low-slope roofs, thermal expansion, and diaphragm shear transfer at supports. FM or UL FM Approvals and manufacturer test reports provide performance data that help reconcile wind demands and span choices.
Miami Metal Deck provides engineering review, manufacturer span table interpretation and code-stamped calculations to document compliant span selection for Type B metal deck in Florida. We validate uplift and live load capacity, specify appropriate fasteners and support details, and ensure installation follows the tested fastening patterns that unlock the tabulated spans or engineered solutions.
Span Selection Workflow
1) Establish project loads: ASCE 7 wind uplift plus applicable live loads and ponding. 2) Define deck function: roof or floor, composite or non-composite. 3) Select candidate Type B profiles and gauges. 4) Check manufacturer and SDI span and uplift tables with your loads. 5) If no table entry, perform engineered section analysis and obtain stamped calculations. 6) Specify fastener pattern, edge details and inspection requirements to achieve the tabulated or calculated spans.

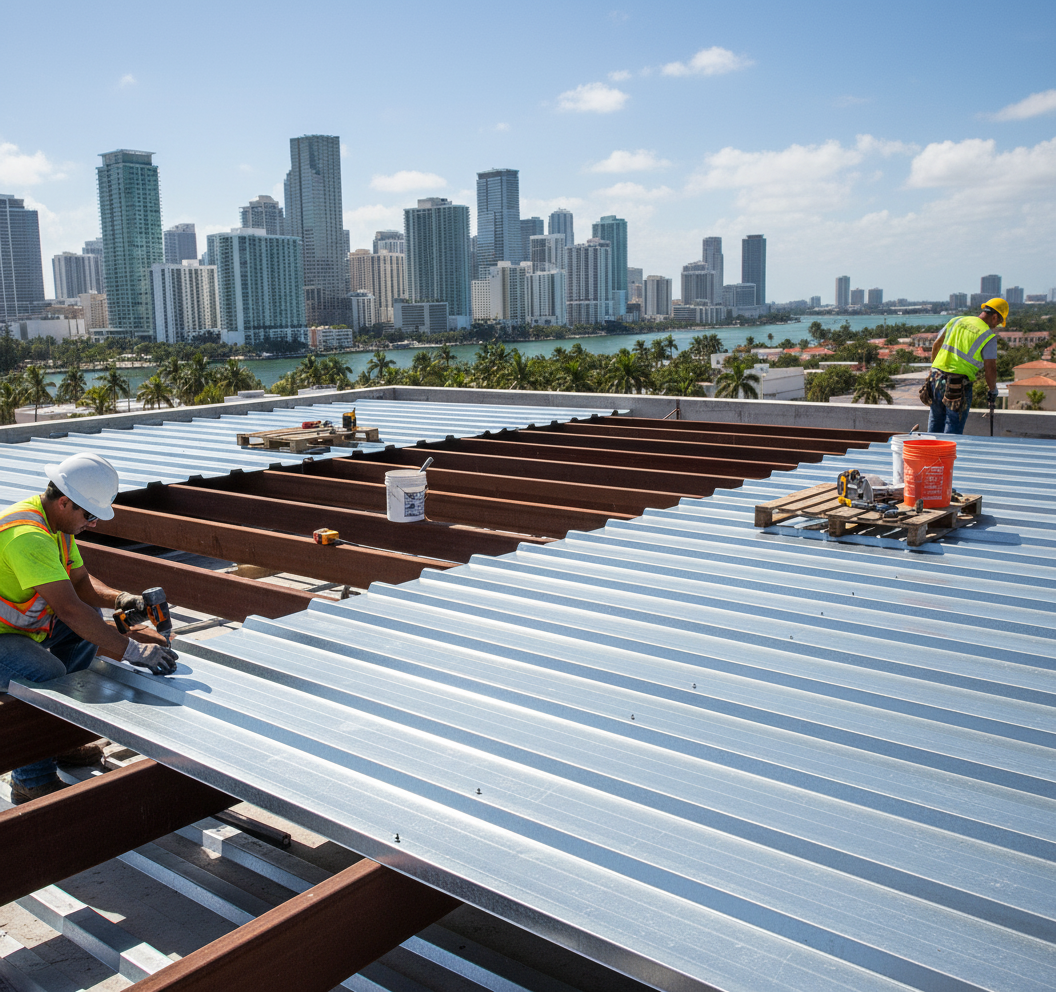

Verification and quality assurance are essential. Miami Metal Deck performs site checks, review of shop drawings, and field inspections to confirm decking installation meets the conditions assumed in the span tables and calculations. We document compliance so your plans examiner and structural engineer can see how wind and live load conditions were addressed for the selected Type B metal deck.
Why Miami Metal Deck
We offer engineered span design, supply and installation for Type B metal deck in Florida. Miami Metal Deck brings local Florida Building Code expertise, in-house engineering, tested fastening practices and a track record on high-wind projects. Our differentiators include stamped calculations, adherence to SDI and manufacturer data, quality assurance on fasteners and edge conditions, and guarantees that installations meet the wind and live load assumptions used in design.
Or Call 305-760-2575
