What Is the Load Capacity of 1.5-Inch Type B Roof Deck?
Per our catalog, 1.5" Type B at 50 ksi has ASD positive moment capacity of 4,939 inch-lbs per foot at 22 gauge, 6,611 at 20, 8,962 at 18 and 11,547 at 16, calculated to SDI and AISI standards. Allowable psf depends on span and span condition, so use the load tables and have the engineer of record confirm it.
What "verified" means in practice
The catalog values are calculated to ANSI/SDI C-2017, NC-2017 and AISI S100 (ASD, safety factor 1.67). Miami and other Florida jurisdictions accept engineered design based on these standards, but the engineer of record verifies that the deck works for the actual loads, spans and fasteners. The catalog is reference data, not professional engineering.
From capacity to a usable number
- Downward load tables give allowable superimposed psf for single, double and triple spans from 5'-0" to 10'-0".
- Upward load tables cover wind uplift on the deck itself.
- Deflection tables give the load that causes L/240.
- Web crippling and shear are not built into the span tables; check bearing separately.
Get the right gauge
Send your structural drawings or roof loads and we will quote the gauge and finish they call for.

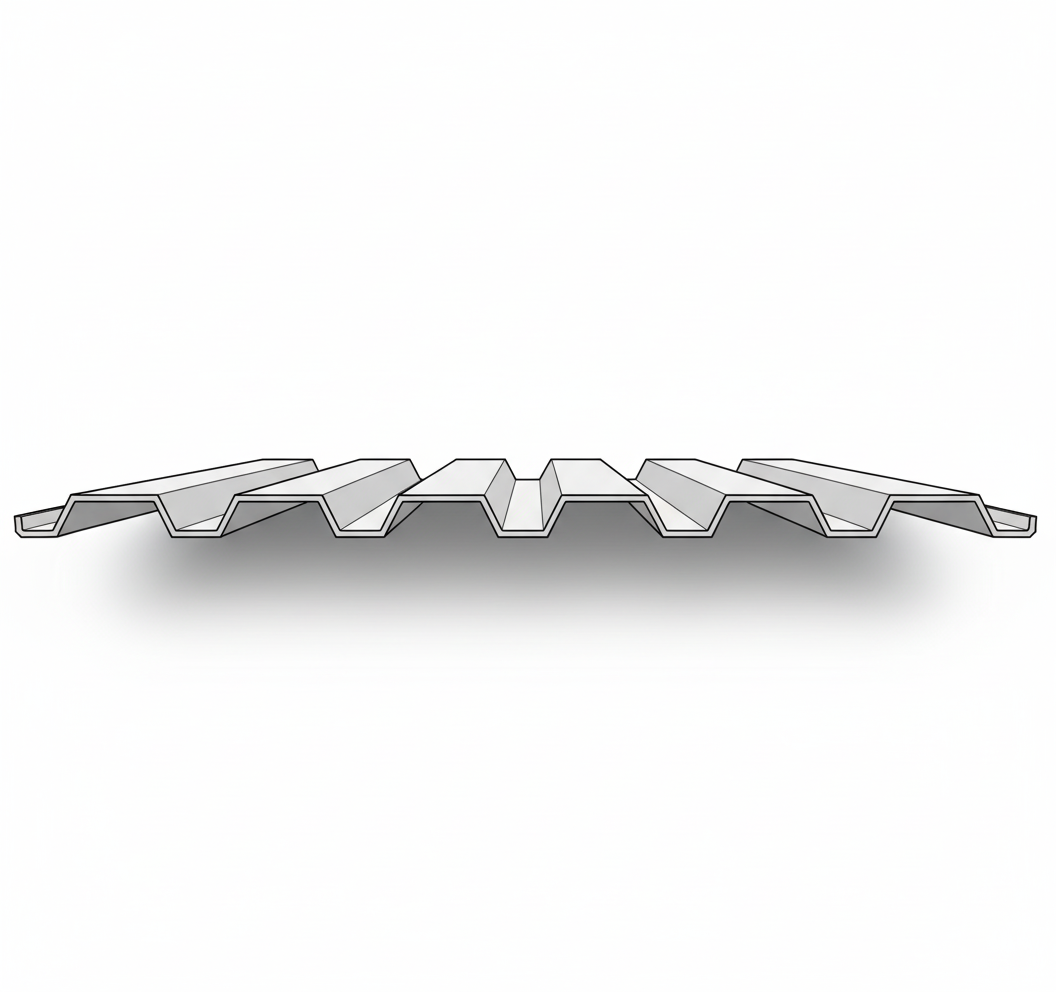

1.5" Type B bare-deck properties, 50 ksi, ASD (catalog)
| Gauge | Weight (psf) | Positive moment Mp/Ω (in-lb/ft) | Negative moment Mn/Ω (in-lb/ft) | Shear Vn/Ω (lb/ft) |
|---|---|---|---|---|
| 22 | 1.6 | 4939 | 5158 | 2804 |
| 20 | 2.0 | 6611 | 6656 | 3392 |
| 18 | 2.6 | 8962 | 9331 | 4465 |
| 16 | 3.0 | 11547 | 11806 | 5599 |
Related Questions
How much load can 20 gauge Type B carry at 6 feet?
The catalog's ASD downward table gives 122 psf single span, 123 psf double and 154 psf triple at 6'-0" for 20 gauge. Deflection can govern: the load causing L/240 at that span is 57 psf single, 138 double and 108 triple. The engineer of record picks the controlling value for your roof.
Are the tabulated loads total or superimposed?
The catalog notes that tabulated loads are uniformly distributed superimposed loads in psf, with span measured center to center of supports. Loads must not be increased by using clear span. Web crippling and shear are not included, so required bearing is checked separately for each support condition.
