Z purlins in Orlando
High-strength Z steel purlins in Orlando for continuous-span roof and wall support with enhanced lateral stability.
Product guide
Product specifications for your Orlando project
Compare profiles, dimensions, material options and applications to prepare your order. Select a product below to explore its technical details.
Z Purlin
Z Purlin is widely used in roof and wall applications offering superior load-bearing capacity and overlapping design for extended spans. Available in gauges 12–18, meeting ANSI standards with galvanized finishes G60 and G90.

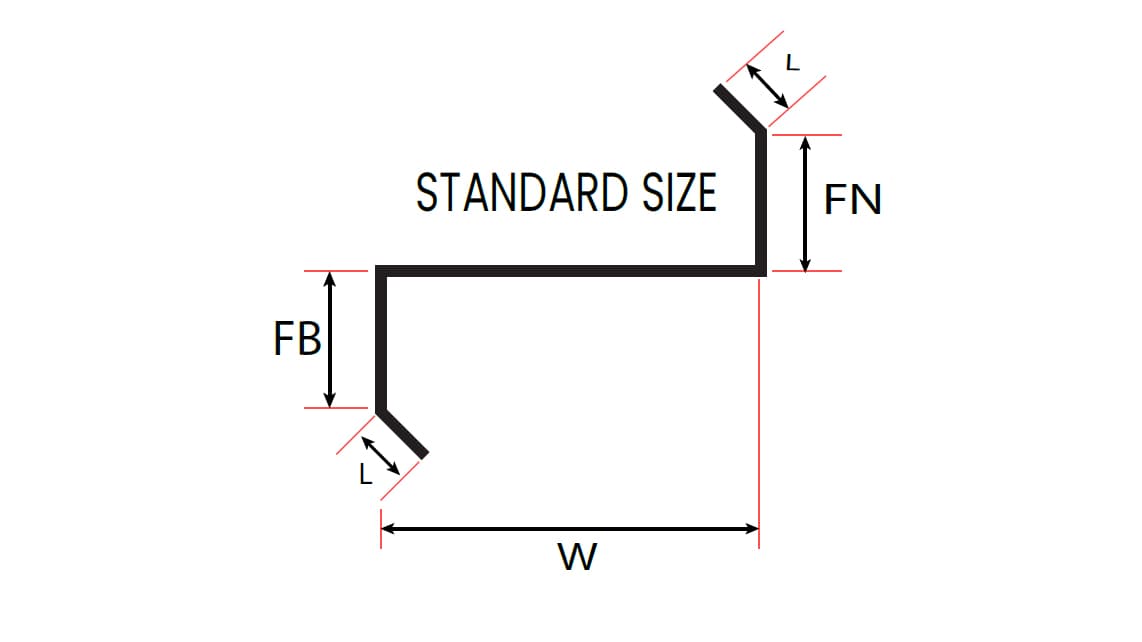

Dimensions and profile
| Property | Dimension |
|---|---|
| Commercial Name | Z Purlin |
| Gauge | 12 to 18 |
| Thickness | 0.047" to 0.094" |
| Weights | 1.94 to 6.78 lbs/ft |
| Size Range | Z6x2.5 to Z12x3 |
| Web Depths | 6 to 12 inches |
| Flanges | 2.5 to 3 inches |
Z Purlins range from Z6x2.5 to Z12x3 with web depths from 6 to 12 inches. Available in gauges 12 through 18 (thickness 0.047" to 0.094"), with weights from 1.94 to 6.78 lbs/ft. Flanges range from 2.5 to 3 inches with lip dimensions up to 0.787 inches.
Sizes, thicknesses and weights
| Purlin Size | Thickness | Weight (lbs/ft) | Gauge | Web | Flange | Lip |
|---|---|---|---|---|---|---|
| Z12x3-12 | 0.094 | 6.78 | 12 | 12 | 3 | 0.787 |
| Z12x3-14 | 0.075 | 5.4 | 14 | 12 | 3 | 0.787 |
| Z10x3-12 | 0.094 | 5.48 | 12 | 10 | 3 | 0.787 |
| Z10x3-14 | 0.075 | 4.37 | 14 | 10 | 3 | 0.709 |
| Z8x3-12 | 0.094 | 4.87 | 12 | 8 | 3 | 0.787 |
| Z8x3-14 | 0.075 | 3.86 | 14 | 8 | 3 | 0.709 |
| Z8x3-16 | 0.059 | 3.02 | 16 | 8 | 3 | 0.591 |
| Z6x2.5-12 | 0.094 | 3.83 | 12 | 6 | 2.5 | 0.709 |
| Z6x2.5-14 | 0.075 | 3.03 | 14 | 6 | 2.5 | 0.669 |
| Z6x2.5-16 | 0.059 | 2.41 | 16 | 6 | 2.5 | 0.630 |
| Z6x2.5-18 | 0.047 | 1.94 | 18 | 6 | 2.5 | 0.591 |
Gauges and thicknesses
| Gauge | Bare steel thickness (in) | Weight (lbs/ft) | Typical applications |
|---|---|---|---|
| 12 | 0.094 | Up to 6.78 lbs/ft | Heavy structural applications, large spans. |
| 14 | 0.075 | Up to 5.4 lbs/ft | Standard commercial structural support. |
| 16 | 0.059 | Up to 3.02 lbs/ft | Medium-duty roof and wall support. |
| 18 | 0.047 | Up to 1.94 lbs/ft | Light-duty applications and agricultural buildings. |
Z Purlins are available in gauges 12 through 18, providing options for varying load and span requirements. Heavier gauges (12 and 14) are ideal for large structural applications. Lighter gauges (16 and 18) suit medium to light-duty applications in commercial and agricultural structures.
Finishes and coatings
| Finish | Details |
|---|---|
| Galvanized G60 | Zinc coating of 0.6 oz/ft². Recommended for general environments. |
| Galvanized G90 | Zinc coating of 0.9 oz/ft². Ideal for highly corrosive environments. |
| Prime-Painted | Provides a base coat for additional protection or paint adhesion. |
| Bare Steel | Unfinished; typically for indoor use or controlled environments. |
Z Purlins come in galvanized (G60 and G90) and prime-painted finishes. G60 provides corrosion resistance for general environments. G90 offers enhanced zinc coating for coastal or high-humidity applications. Prime-painted adds a protective base coat for projects requiring additional coatings.
Material and finish options
Choose from our high-strength 55 KSI steel Z Purlins, available with corrosion-resistant galvanized finishes meeting ANSI standards, painted options for tailored aesthetics, or bare steel for custom applications. Each finish is designed to enhance durability and performance.
Custom lengths
Whether you require precise lengths ranging from 6′-0″ for smaller projects or extensive spans up to 40′-0″ for larger constructions, we cater to all dimensions with precision and efficiency. Our custom length service ensures optimal fit and minimal waste.
Z Purlin features
Elevate your projects with our Z Purlins, featuring superior load-bearing capacity, overlapping design for extended spans, and corrosion-resistant finishes. Ideal for large-scale commercial, industrial, and agricultural roofing and wall systems.
Superior Load-Bearing Capacity
Engineered to handle higher structural loads with the overlapping design providing continuous-span structural efficiency.
Overlapping for Extended Spans
Z purlins overlap and interlock at intermediate supports, creating continuous-beam behavior for greater structural efficiency over longer distances.
Corrosion-Resistant Finishes
Available in G60 and G90 galvanized or prime-painted finishes for excellent durability and resistance to harsh environmental conditions.
Cost-Effective
Longer spans with fewer intermediate supports reduce material and labor costs for large-scale roofing and wall systems.
Compliance with SDI Standards
Meets Steel Deck Institute and ANSI guidelines, ensuring quality and code compliance.
Versatile Applications
Multiple sizes (Z6x2.5 to Z12x3) and gauges (12–18) for commercial, industrial, and agricultural structural applications.
Installation and connections
Installation practices
- Install Z Purlins perpendicular to primary structural supports.
- Anchor at each support using bolts, welds, or self-drilling screws.
- Overlap and interlock purlins at intermediate supports, secured at 12" o.c.
Fasteners and attachments
- ½" Diameter Bolts for secure connection to primary frames
- #12 Self-Drilling Screws at 6" o.c. along supports and 12" o.c. at overlaps
- Overlapping joints fastened with #12 Self-Drilling Screws at 12" o.c.
Confirm the profile, gauge, span, loads and connections against your project drawings and the applicable product load tables before ordering.
Applications
Long-Span Roofing Systems
Z purlins are ideal for large-scale commercial and industrial roofing systems requiring continuous spans and fewer intermediate supports. The overlapping design maximizes structural efficiency across long roof runs.
Continuous Wall Cladding Support
Z purlins provide continuous wall girt support for metal cladding systems in industrial, commercial, and agricultural buildings, offering superior lateral stability through the interlocking profile.
Standards and product documentation
The Z Purlin complies with SDI (Steel Deck Institute) specifications, ensuring high standards for design and performance.
Z Purlin questions
What is a Z Purlin and what is it used for?
A Z Purlin is a cold-formed steel structural member shaped like the letter 'Z', used primarily as roof purlins and wall girts in commercial, industrial, and agricultural metal building systems.
What is the advantage of Z Purlins over C Purlins?
Z purlins can overlap and interlock at intermediate supports, creating continuous-beam behavior that provides greater structural efficiency and load capacity over longer spans compared to simple-span C purlins.
What sizes and gauges are Z Purlins available in?
Available from Z6x2.5 to Z12x3 in gauges 12 through 18, with web depths from 6 to 12 inches and flanges from 2.5 to 3 inches.
What finishes are available for Z Purlins?
Available in G60 and G90 galvanized finishes for corrosion resistance and prime-painted finishes for projects requiring additional coatings.
Can Z Purlins be customized?
Yes, custom Z Purlins are offered tailored in length (6' to 40'), gauge, and finish to meet specific project specifications.
Planning your order
Z Purlins supply for Orlando
Send your project drawings or material list so our team can review quantities, profile requirements and cut lengths. We can help with takeoffs and shop drawings, then confirm pricing and delivery options for your Orlando project.
Send your project requirementsWhat to include in your quote request
- Product profile or series, dimensions, gauge and specified finish.
- Required quantities, sheet or member lengths, and project drawings.
- Project address in Orlando, delivery date and site access requirements.
- Any specified load tables, connection details or supporting documentation.
How We Work
We Guide You Through the Process
From manufacturing to delivery, we ensure precision, efficiency, and compliance with industry standards.
Takeoff and Shop Drawings Services
We provide specialized takeoff services for accurate quotations and detailed shop drawings to produce optimized cutting lists for sheets, ensuring efficient execution and waste-free outcomes in your projects.
Manufacture
We manufacture metal decks to SDI and ANSI standards, ensuring strength, durability, and compliance. We provide custom lengths and high-precision fabrication for optimized performance in roof, floor, and form deck applications.
Swift Deliveries & Nationwide Reach
While based in South Florida, we serve clients nationwide, ensuring quality, efficiency, and timely deliveries across the U.S., reflecting our commitment to excellence without boundaries.
Frequently Asked Questions
Do you supply Z purlins in Orlando?
Yes. We deliver Z purlins to Orlando with 1-day service available. Call 305-760-2575 for pricing.
When should I use Z instead of C purlins?
Z purlins are preferred for continuous spans where they can overlap and interlock at supports, providing greater load efficiency over longer distances.
