SDI Member ANSI/SDI compliant

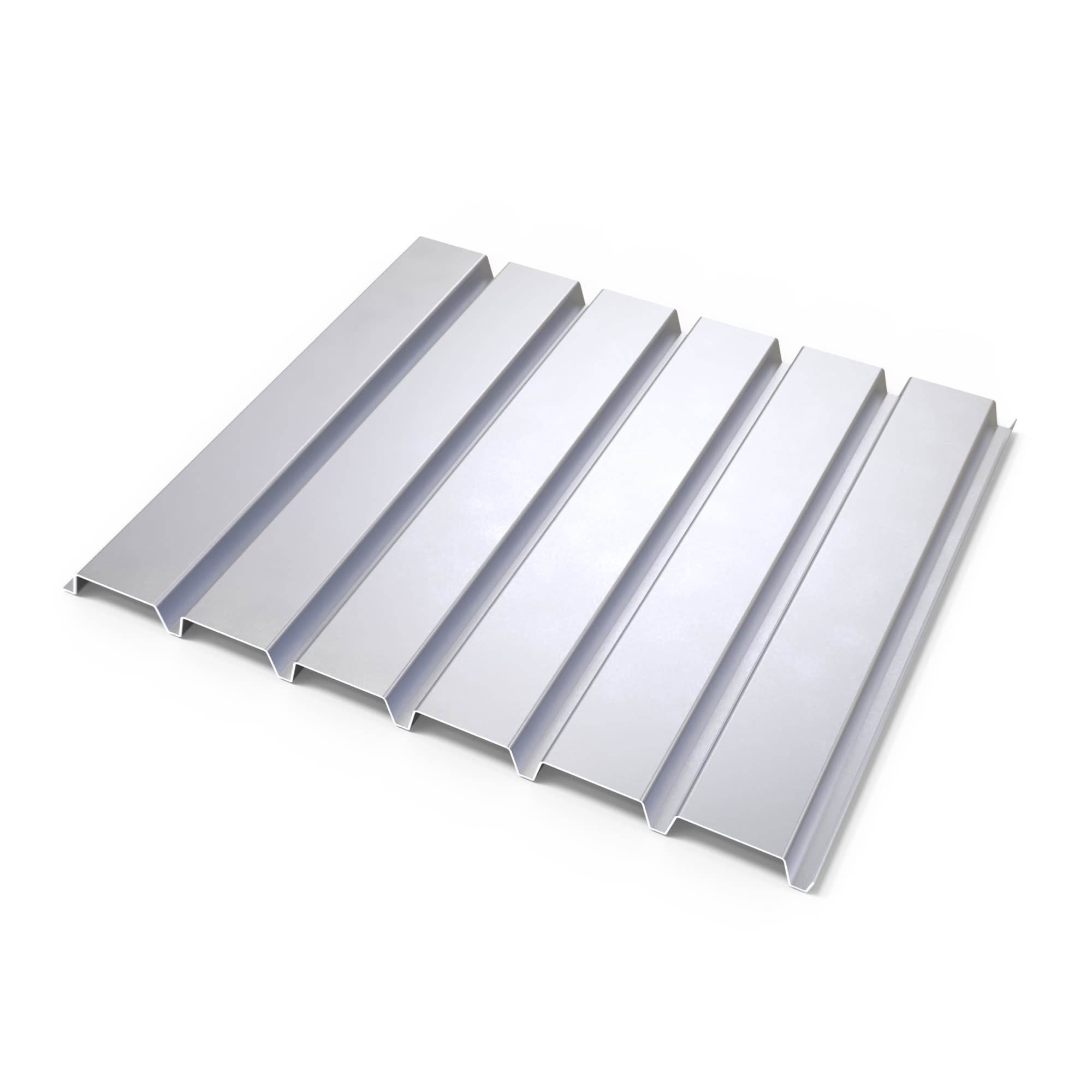

1.5" F MMD ROOF DECK
The 1.5" Type F steel deck is designed for roofing applications, offering excellent structural strength and efficient installation. With a 1.5-inch narrow rib profile, it is available in gauges from 22 GA to 16 GA, providing flexibility for various projects. This deck complies with SDI and ANSI standards and is offered in galvanized finishes such as G60 and G90.
Strong and easy to install. Perfect for your roofing and structural needs.
Features
1.5" F MMD ROOF DECK Features
Enhance your projects with our 1.5" Type F roof deck, featuring strength, fire resistance, and durability. Perfect for efficient roofing in commercial applications.
Narrow Rib Profile
Designed with a 1.5-inch narrow rib depth, providing excellent structural strength and support for roofing systems.
Standard 30-Inch Coverage
Offers a 30-inch effective coverage, making it efficient for installation in roofing applications.
Galvanized Finish Options
Comes in G60 and G90 galvanized finishes, offering superior corrosion resistance for durability in exposed environments.
Lightweight and Easy to Install
Its narrow rib design and lightweight material make it easy to handle and install, reducing labor time and costs.
Compliance with Standards
Meets Steel Deck Institute (SDI) and ANSI specifications, ensuring safety and quality in structural applications.
Wide Gauge Availability
Available in gauges ranging from 22 GA to 16 GA, allowing for customization based on project requirements and load capacities.
Options
1.5" Type F Roof Deck Options
The 1.5" Type F roof deck offers corrosion-resistant finishes and custom lengths (6′ to 40′) for narrow-rib ceiling and utility platform applications.
Finish & Material Options
Choose from our high-strength 50 KSI steel Type F 1.5" Deck, available with a corrosion-resistant galvanized finish meeting ANSI/SDI standards, a variety of painted finishes for tailored aesthetics, or bare steel for custom applications. Each finish is designed to enhance durability and maintain performance in demanding environments.
Request a Quote →Finish and Coatings
Choose from our high-strength 50 KSI steel Type F 1.5" Deck, available with a corrosion-resistant galvanized finish meeting ANSI/SDI standards, a variety of painted finishes for tailored aesthetics, or bare steel for custom applications. Each finish is designed to enhance durability and maintain performance in demanding environments.
Request a Quote →Custom Lengths
Whether you require precise deck lengths ranging from 6′-0″ for smaller projects or extensive spans up to 40′-0″ for larger constructions, we cater to all dimensions with precision and efficiency. Our custom length service is designed to meet your specific requirements, ensuring optimal fit and minimal waste.
Request a Quote →Specifications
Specifications of 1.5" Type F Roof Deck
Key details on strength, gauge, finish, and depth for the 1.5" Type F metal decking
Dimensions and Profile Details
| Property | Details |
|---|---|
| Profile Depth | 1.5 inches |
| Coverage Width | 30 inches |
| Rib Spacing | 4.5 inches (center-to-center) |
| Rib Height | 1.5 inches |
The 1.5" Type F roof deck features a rib depth of 1.5 inches and a standard coverage width of 30 inches, making it ideal for efficient and durable roofing applications. Its rib spacing of 4.5 inches (center to center) and overall material width of 32 inches allow for secure overlaps and reliable structural support. The profile is designed to maximize strength while minimizing weight, ensuring performance and longevity in roofing systems.
Gauge
| Gauge | Bare Steel Thickness (in) | Weight (lbs/sq ft) | Typical Applications |
|---|---|---|---|
| 22 | 0.0295 | 1.6 | Light-duty roofing and small spans. |
| 20 | 0.0358 | 2 | Medium spans, roofing, and siding. |
| 18 | 0.0474 | 2.6 | Heavy-duty applications. |
| 16 | 0.0598 | 3 | Heavy load spans. |
The Type F deck is available in a range of gauges, including 22, 20, 18, and 16. These gauges offer varying thicknesses and load capacities to suit specific project needs. Thinner gauges (22 and 20) are lightweight and cost-effective, ideal for shorter spans and lighter loads. Thicker gauges (18 and 16) provide enhanced structural strength and can support longer spans and heavier loads, making them perfect for demanding applications.
Finish
| Finish Type | Details |
|---|---|
| Galvanized G60 | Zinc coating of 0.6 oz/ft². Recommended for general environments. |
| Galvanized G90 | Zinc coating of 0.9 oz/ft². Ideal for highly corrosive environments. |
| Prime-Painted | Provides a base coat for additional protection or paint adhesion. |
| Bare Steel | Unfinished; typically for indoor use or controlled environments. |
To ensure durability and long-term performance, the Type F deck comes in multiple finish options, including galvanized (G60 and G90) and prime-painted. Galvanized finishes provide excellent corrosion resistance, with G90 offering higher zinc coating for environments with greater exposure to moisture or chemicals. The prime-painted option adds a protective base coat, making it suitable for projects requiring additional layers of paint or coatings.
Installation
Installation Details and Guidelines
Essential practices for proper installation, attachment, and fasteners.
Standard Installation Practices
- 1Install the deck perpendicular to the supports.
- 2Weld or screw the deck at each support with puddle welds or TEK screws.
- 3Overlap sidelaps and secure with screws at 12" o.c.
Deck Attachment and Fasteners
- 5/8" Diameter Puddle Welds
- #10 TEK screws at 6" o.c. on edges, and 12" o.c. for sidelaps
- Sidelaps attached using #10 TEK screws at 12" o.c.
Applications
Applications of 1.5" Type F Metal Decking
With its narrow rib profile, the 1.5" Type F roof deck excels in ceiling support systems and provides a durable base for rooftop mechanical and utility platforms.
Ceiling Support Systems
The 1.5" Type F roof deck offers strong ceiling support for commercial applications. Its narrow rib profile ensures structural reliability and a clean underside, making it ideal for suspended or exposed ceiling installations.
Read More →
Mechanical and Utility Platform Base
The 1.5" Type F roof deck provides a durable base for mechanical and utility platforms. Its narrow rib design ensures structural strength, making it ideal for supporting rooftop HVAC systems, walkways, and other utility installations.
Read More →
Compliance with Standards
The 1.5" Type F deck complies with SDI (Steel Deck Institute) specifications, ensuring high standards for design and performance.
Know More (sdi.org) →Delivery Areas
Cities Available for Type F roof deck delivery in 1 day
Fast, reliable delivery throughout Florida with nationwide shipping available.
North Florida / Panhandle
Southwest Florida
Central Florida
Space & Treasure Coasts
South Florida
FAQ
FAQs About 1.5" F MMD ROOF DECK
What is the Type F Roof Deck used for?
The Type F Roof Deck is primarily used for roofing systems, providing a strong and lightweight base for various roof assemblies, including single-ply, built-up, and insulated roofs.
What gauges are available for the Type F Roof Deck?
The Type F Roof Deck is available in gauges ranging from 22 GA to 16 GA, offering flexibility to meet different load and span requirements.
What is the effective coverage of the Type F Roof Deck?
It provides a 30-inch effective coverage, making it efficient for roofing applications with narrow rib profiles for enhanced strength.
Can the Type F Roof Deck be used for flooring applications?
No, the Type F Roof Deck is not suitable for flooring. Its narrow rib profile is designed specifically for roofing systems and does not provide the bonding required for composite concrete floors.
What finishes are available for the Type F Roof Deck?
It comes in galvanized finishes (G60 or G90) for corrosion resistance and prime-painted options for added protection, ensuring durability in various environments.
