SDI Member · ANSI/SDI compliant
Steel Deck Supplier in Palm Bay
High-performance steel deck in Palm Bay for durable, efficient structures. Roof deck, composite floor deck, and form deck.
Product guide
Product specifications for your Palm Bay project
Compare profiles, dimensions, material options and applications to prepare your order. Select a product below to explore its technical details.
1.5" Type B Roof Deck
1.5 Type B metal deck supplier for projects in Palm Bay, offering durable and versatile decking ideal for roof applications. It provides excellent structural strength and easy installation, with gauges from 22 GA to 16 GA to suit various project needs. It meets SDI and ANSI standards and is available in galvanized finishes such as G60 and G90 for enhanced durability and corrosion resistance.
Dimensions and profile
| Property | Dimension |
|---|---|
| Profile Depth | 1.5 inches |
| Coverage Width | 36 inches |
| Rib Spacing | 6 inches (center to center) |
| Rib Height | 1.5 inches |
The 1.5" Type B metal deck features a rib depth of 1.5 inches and a standard coverage width of 36 inches, making it ideal for structural efficiency in roofing and flooring applications. Its rib spacing of 6 inches (center to center) and overall material width of 39 inches allow for secure overlaps and strong composite action when combined with concrete slabs. The profile is designed to maximize strength while minimizing weight, ensuring durability and versatility in various construction projects.
Gauges and thicknesses
| Gauge | Bare steel thickness (in) | Weight (lbs/sq ft) | Typical applications |
|---|---|---|---|
| 22 | 0.0295 | 1.6 | Light-duty roofing and small spans. |
| 20 | 0.0358 | 2 | Medium spans, roofing, and siding. |
| 18 | 0.0474 | 2.6 | Heavy-duty applications. |
| 16 | 0.0598 | 3 | Heavy load spans. |
The Type B deck is available in a range of gauges, including 22, 20, 18, and 16. These gauges offer varying thicknesses and load capacities to suit specific project needs. Thinner gauges (22 and 20) are lightweight and cost-effective, ideal for shorter spans and lighter loads. Thicker gauges (18 and 16) provide enhanced structural strength and can support longer spans and heavier loads, making them perfect for demanding applications.
Finishes and coatings
| Finish | Details |
|---|---|
| Galvanized G60 | Zinc coating of 0.6 oz/ft². Recommended for general environments. |
| Galvanized G90 | Zinc coating of 0.9 oz/ft². Ideal for highly corrosive environments. |
| Prime-Painted | Provides a base coat for additional protection or paint adhesion. |
| Bare Steel | Unfinished; typically for indoor use or controlled environments. |
To ensure durability and long-term performance, the Type B deck comes in multiple finish options, including galvanized (G60 and G90) and prime-painted. Galvanized finishes provide excellent corrosion resistance, with G90 offering higher zinc coating for environments with greater exposure to moisture or chemicals. The prime-painted option adds a protective base coat, making it suitable for projects requiring additional layers of paint or coatings.
Material and finish options
Choose from our material options including high-strength steel in 33 KSI, 40 KSI, 50 KSI, and 80 KSI grades. Each option is engineered to meet specific structural requirements, providing the right balance of strength and flexibility. Galvanized (G60/G90) and prime-painted finishes conform to ASTM A653 specifications for corrosion resistance.
Custom lengths
Whether you require precise deck lengths ranging from 6′-0″ for smaller projects or extensive spans up to 40′-0″ for larger constructions, we cater to all dimensions with precision and efficiency. Our custom length service is designed to meet your specific requirements, ensuring optimal fit and minimal waste.
1.5" Type B Roof Deck features
Elevate your projects with our 1.5" Type B metal deck, featuring lightweight durability, fire resistance, and sustainable design. Perfect for eco-friendly and efficient short-span applications in commercial settings.
High Strength-to-Weight Ratio
Offers exceptional load capacity while minimizing weight, perfect for roofing systems.
Standard 36 inches Coverage
Provides 36-inch wide coverage with a consistent rib design, reducing installation time and increasing efficiency.
Galvanized or Prime-Painted Finish
Choose G60/G90 galvanized or prime-painted finishes for enhanced durability and corrosion resistance.
Compatibility with Roofing Systems
Supports roofing systems with insulation, waterproofing, reflective coatings, drainage, ventilation, and other components.
Compliance with Standards
Meets Steel Deck Institute (SDI) and ANSI guidelines, ensuring quality and code compliance.
Wide Gauge Range
Available in 22, 20, 18, and 16 gauges, allowing customization to meet specific load-bearing requirements and project demands.
Installation and connections
Installation practices
- Install the deck perpendicular to the supports.
- Weld or screw the deck at each support with puddle welds or TEK screws.
- Overlap sidelaps and secure with screws at 12" o.c.
Fasteners and attachments
- 5/8" Diameter Puddle Welds
- #10 TEK screws at 6" o.c. on edges, and 12" o.c. for sidelaps
- Sidelaps attached using #10 TEK screws at 12" o.c.
Confirm the profile, gauge, span, loads and connections against your project drawings and the applicable product load tables before ordering.
Applications
Roof Deck Applications
Type B is widely used in commercial and industrial roof systems where structural strength and durability are essential. It supports roofing insulation systems and can be used for both vented and non-vented roofing.
Hybrid Structural-Ceiling Systems
Type B decking is ideal for use as an exposed ceiling element in architectural spaces, offering structural strength and a clean finish while reducing the need for added materials and installation time.
Standards and product documentation
The 1.5" Type B deck complies with SDI (Steel Deck Institute) specifications, ensuring high standards for design and performance. SDI: The 1.5" Type B deck complies with SDI specifications, ensuring high standards for design and performance.
1.5" Type B Roof Deck questions
What gauge is most commonly used for Type B decking?
20 gauge is generally the most common for Type B decking due to its balance of cost and strength for typical applications. However, project-specific requirements can necessitate other gauges.
What is the difference between G60 and G90 galvanized finishes?
G60 has a coating of 0.60 oz/ft², while G90 has 0.90 oz/ft², providing 50% more zinc and greater resistance to corrosion. G60 is suitable for indoor applications or low-moisture environments. G90 is ideal for outdoor use, roofing, steel decking, and structures exposed to weather, humidity, or corrosive conditions.
What are the maximum spans for the 1.5" Type B deck?
Maximum spans depend on the gauge, span type, and load requirements. For example, 22-gauge decks can span up to 8 feet under multiple spans, while 16-gauge decks can span up to 14 feet. Always consult load tables for precise details.
1.5" Type B metal decking be customized for specific projects?
Yes, the deck can be customized in terms of gauge, finish, and length. Custom lengths are cut to suit project needs, reducing waste and optimizing installation efficiency.
Does 1.5" Type B metal decking meet industry standards?
Absolutely. It complies with Steel Deck Institute (SDI) standards and American Iron and Steel Institute (AISI) design guidelines, ensuring quality, safety, and compatibility with construction codes.
3" Type N Roof Deck
3" Type N Metal deck is widely used in roof applications due to its long-span capabilities and structural strength. The Type N profile is 3 inches deep and comes in gauges ranging from 22 GA to 16 GA, providing flexibility for various roofing projects. This deck complies with SDI and ANSI standards and is available in galvanized finishes like G60 and G90.
Dimensions and profile
| Property | Dimension |
|---|---|
| Profile Depth | 3 inches |
| Coverage Width | 24 inches |
| Rib Spacing | 8 inches (center to center) |
| Rib Height | 3 inches |
The Type N Roof Deck is available in a range of gauges, including 22, 20, 18, and 16. These gauges provide options for varying thicknesses and load capacities to meet specific roofing project needs. Lighter gauges (22 and 20) are suitable for short spans and lighter loads, offering cost efficiency. Heavier gauges (18 and 16) deliver enhanced strength and durability, ideal for long spans and heavy-duty roofing applications.
Gauges and thicknesses
| Gauge | Bare steel thickness (in) | Weight (lbs/sq ft) | Typical applications |
|---|---|---|---|
| 22 | 0.0295 | 1.8 | Light duty roofs. |
| 20 | 0.0358 | 2.2 | Standard commercial roofs. |
| 18 | 0.0474 | 2.9 | Heavy load areas. |
| 16 | 0.0598 | 3.7 | Long spans, high loads. |
The Type N deck is available in a range of gauges, including 22, 20, 18, and 16. These gauges offer varying thicknesses and load capacities to suit specific project needs. Thinner gauges (22 and 20) are lightweight and cost-effective, ideal for shorter spans and lighter loads. Thicker gauges (18 and 16) provide enhanced structural strength and can support longer spans and heavier loads, making them perfect for demanding applications.
Finishes and coatings
| Finish | Details |
|---|---|
| Galvanized G60 | Zinc coating of 0.6 oz/ft². Recommended for general environments. |
| Galvanized G90 | Zinc coating of 0.9 oz/ft². Ideal for highly corrosive environments. |
| Prime-Painted | Provides a base coat for additional protection or paint adhesion. |
| Bare Steel | Unfinished; typically for indoor use or controlled environments. |
To ensure durability and long-term performance, the Type N deck comes in multiple finish options, including galvanized (G60 and G90) and prime-painted. Galvanized finishes provide excellent corrosion resistance, with G90 offering higher zinc coating for environments with greater exposure to moisture or chemicals. The prime-painted option adds a protective base coat, making it suitable for projects requiring additional layers of paint or coatings.
Material and finish options
Choose from our high-strength 80 KSI steel Type N 3" Roof Deck, available with a corrosion-resistant galvanized finish meeting ANSI standards, prime-painted finishes for additional protection, or bare steel for specialized applications. Each finish is engineered to ensure durability and reliable performance in demanding roofing environments.
Custom lengths
Whether you need precise deck lengths ranging from 6′-0″ for smaller roofing projects or extended spans up to 40′-0″ for large-scale constructions, the 3" Type N Roof Deck delivers with accuracy and efficiency. Our custom length service ensures an optimal fit, reduced waste, and streamlined installation.
3" Type N Roof Deck features
Elevate your projects with our 3" Type N roof deck, offering superior strength, fire-rated performance, and long-span efficiency. Ideal for large-scale commercial roofing and sustainable building applications.
Deep Rib Profile for High Strength
The 3-inch rib depth provides superior strength, making it ideal for longer spans and heavy roofing loads.
Wide Coverage Efficiency
With a standard 24-inch coverage, it reduces material usage and simplifies installation, perfect for large-scale projects.
Corrosion-Resistant Finish Options
Available in G60 or G90 galvanized finishes for excellent durability and resistance to harsh environmental conditions.
Fire and Acoustic Performance
Meets fire-rating standards when used in approved assemblies and supports insulation for soundproofing and thermal efficiency.
Compliance with SDI Standards
Meets Steel Deck Institute (SDI) and ANSI guidelines, ensuring quality and code compliance.
Long Span Capability
Available in 22, 20, 18, and 16 gauges, allowing customization to meet specific load-bearing requirements and project demands.
Installation and connections
Installation practices
- Install the deck perpendicular to the supports.
- Weld or screw the deck at each support with puddle welds or TEK screws.
- Overlap sidelaps and secure with screws at 12" o.c. (on center).
Fasteners and attachments
- 5/8" Diameter Puddle Welds
- #12 or #14 TEK screws at 6" o.c. on edges, and 12" o.c. for sidelaps
- Sidelaps attached using #12 TEK screws at 12" o.c.
Confirm the profile, gauge, span, loads and connections against your project drawings and the applicable product load tables before ordering.
Applications
Long-Span Roofing Systems
Type N is perfect for large-scale commercial and industrial roofing systems requiring long spans and fewer supports. Its 3-inch rib profile ensures exceptional strength and efficiency for expansive roof designs.
Fire-Rated Roof Assemblies
Type N is commonly used in fire-rated roof systems, offering compatibility with insulation and fireproofing materials. It ensures safety and performance for demanding commercial and industrial applications.
Standards and product documentation
The 3" Type N deck complies with SDI (Steel Deck Institute) specifications, ensuring high standards for design and performance. SDI: The 3" Type N deck complies with SDI specifications, ensuring high standards for design and performance.
3" Type N Roof Deck questions
What is the 3" Type N Roof Deck used for?
The Type N Roof Deck is designed for long-span roofing applications, providing structural support for commercial and industrial roof systems.
What are the span capabilities of the Type N Roof Deck?
Depending on the gauge, the Type N Deck can span up to 16 feet, reducing the need for intermediate supports.
What gauges are available for the 3" Type N Roof Deck?
It is available in gauges ranging from 16 GA to 22 GA, offering options for different load and span requirements.
Is the Type N Roof Deck compatible with fire-rated roofing systems?
Yes, the Type N Deck supports fire-rated assemblies and accommodates insulation and fireproofing materials for enhanced safety.
What finishes are available for the Type N Roof Deck?
It comes in galvanized finishes (G60 or G90) for corrosion resistance and prime-painted options for additional protection.
1.5" Type B Vented Roof Deck
1.5" Type B Vented Deck is specifically designed for use in Lightweight Insulated Concrete (LWIC) applications, providing enhanced bonding and superior load distribution. The vented Type B profile is 1.5 inches deep and comes in gauges ranging from 22 GA to 18 GA, offering versatility for different projects. This deck complies with SDI and ANSI standards and is available in galvanized finishes like G60 and G90 for durability and corrosion resistance.
Dimensions and profile
| Property | Dimension |
|---|---|
| Profile Depth | 1.5 inches |
| Coverage Width | 36 inches |
| Rib Spacing | 6 inches (center to center) |
| Rib Height | 1.5 inches |
The 1.5" Type B Vented Deck features a rib depth of 1.5 inches and a standard coverage width of 36 inches, making it ideal for Lightweight Insulated Concrete (LWIC) applications. Its 6-inch rib spacing (center to center) and overall width of 39 inches allow for secure overlaps and strong composite action with concrete slabs. The perforated profile enhances adhesion and ensures proper curing of LWIC, maximizing strength, durability, and efficiency.
Gauges and thicknesses
| Gauge | Bare steel thickness (in) | Weight (lbs/sq ft) | Typical applications |
|---|---|---|---|
| 22 | 0.0295 | 1.6 | Light-duty roofing and small spans. |
| 20 | 0.0358 | 2 | Medium spans, roofing, and siding. |
| 18 | 0.0474 | 2.6 | Heavy-duty applications. |
| 16 | 0.0598 | 3 | Heavy load spans. |
The Type B Vented Deck is available in gauges 22, 20, and 18, offering different thicknesses and load capacities to meet specific project needs. Lighter gauges (22 and 20) are cost-effective and ideal for shorter spans, while thicker gauge (18) provide greater structural strength, supporting longer spans and heavier loads. The perforated design enhances the bond between LWIC and the deck, ensuring proper adhesion and curing in insulated concrete applications.
Finishes and coatings
| Finish | Details |
|---|---|
| Galvanized G60 | Zinc coating of 0.6 oz/ft². Recommended for general environments. |
| Galvanized G90 | Zinc coating of 0.9 oz/ft². Ideal for highly corrosive environments. |
| Prime-Painted | Provides a base coat for additional protection or paint adhesion. |
| Bare Steel | Unfinished; typically for indoor use or controlled environments. |
To ensure durability and long-term performance, the Type B Vented Deck comes in galvanized (G60 and G90) and prime-painted finishes. Galvanized coatings offer corrosion resistance, with G90 providing extra protection for highly corrosive environments. The prime-painted option adds a protective base coat, ideal for projects requiring additional coatings. These finishes extend the deck's lifespan while ensuring optimal performance in LWIC applications.
Material and finish options
Choose from our high-strength 50 KSI steel B 1.5" Vented Deck, available with a corrosion-resistant galvanized finish meeting ANSI/SDI standards, a variety of painted finishes for tailored aesthetics, or bare steel for custom applications. Each finish is designed to enhance durability and maintain performance in demanding environments.
Custom lengths
Whether you require precise deck lengths ranging from 6′-0″ for smaller projects or extensive spans up to 40′-0″ for larger constructions, we cater to all dimensions with precision and efficiency. Our custom length service is designed to meet your specific requirements, ensuring optimal fit and minimal waste.
1.5" Type B Vented Roof Deck features
Elevate your projects with our 1.5" Type B Vented Deck, featuring lightweight durability, airflow control, and fire resistance. Perfect for ventilated and efficient commercial applications.
Optimized for LWIC Systems
Designed to enhance adhesion in Lightweight Insulated Concrete (LWIC) applications, ensuring proper bonding and structural performance.
Improved Concrete Bonding
Perforations enhance the bond between lightweight concrete and the deck, ensuring a strong roof system with superior load distribution.
Structural & Fire Performance
Complies with SDI and ANSI standards, offering high durability and fire-rated performance when used in LWIC systems.
LWIC Roofing Applications
Ideal for Lightweight Insulated Concrete (LWIC) roof systems, providing strength, adhesion, and long-term performance in insulated roofing applications.
Compliance with SDI Standards
Meets Steel Deck Institute (SDI) and ANSI guidelines, ensuring quality and code compliance.
Moisture Management
Designed to help prevent trapped moisture, improving durability and reducing the risk of mold or corrosion.
Installation and connections
Installation practices
- Install the deck perpendicular to the supports.
- Weld or screw the deck at each support with puddle welds or TEK screws.
- Overlap sidelaps and secure with screws at 12" o.c.
Fasteners and attachments
- 5/8" Diameter Puddle Welds
- #10 TEK screws at 6" o.c. on edges, and 12" o.c. for sidelaps
- Sidelaps attached using #10 TEK screws at 12" o.c.
Confirm the profile, gauge, span, loads and connections against your project drawings and the applicable product load tables before ordering.
Applications
Lightweight Concrete Systems
Ideal for composite slabs in LWIC systems, the perforations improve concrete bonding by allowing moisture to escape during curing. This prevents trapped condensation, enhances structural integrity, and ensures a durable insulated concrete system.
Moisture-Controlled Roof Assemblies
Designed for lightweight insulated concrete (LWIC) applications, the perforated profile improves concrete adhesion and curing. By allowing moisture release during the curing process, it enhances long-term insulation performance and prevents structural degradation in humid environments.
Standards and product documentation
The 1.5" B Vented deck complies with SDI (Steel Deck Institute) specifications, ensuring high standards for design and performance.
1.5" Type B Vented Roof Deck questions
What is the purpose of the perforations in the vented Type B deck?
The perforations allow for better airflow and moisture control, preventing condensation buildup and improving adhesion in lightweight concrete applications.
How does the vented Type B deck improve composite floor systems?
The small perforations enhance the bond between the deck and concrete, ensuring stronger composite action while allowing moisture to escape, reducing the risk of trapped water.
Is vented Type B deck suitable for all roofing applications?
Yes, but it is particularly beneficial in moisture-sensitive environments, such as vented roofing systems, where air circulation helps prevent insulation degradation and corrosion.
What finish options are available for the vented Type B deck?
It comes in galvanized (G60/G90) for corrosion resistance and prime-painted finishes, offering protection and compatibility with additional coatings.
Does the vented Type B deck affect structural strength?
No, the perforations are strategically placed to maintain the deck's load capacity while providing ventilation benefits for specific applications.

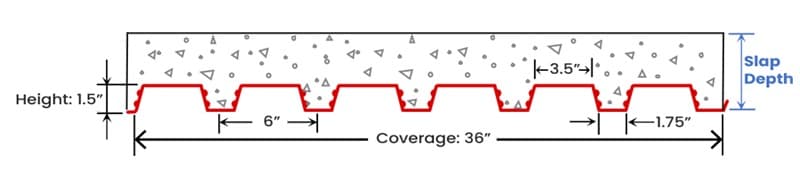

1.5" Composite Floor Deck
1.5" Composite Floor Deck provides high strength-to-weight ratio with composite bonding for concrete, designed to bond with concrete and enhance structural efficiency. Available in gauges 22 GA to 16 GA with galvanized finishes G60/G90. Meets SDI and ANSI standards.
Dimensions and profile
| Property | Dimension |
|---|---|
| Profile Depth | 1.5 inches |
| Coverage Width | 36 inches |
| Rib Spacing | 6 inches (center to center) |
| Material Width | 39 inches |
The 1.5" Composite Floor Deck features a rib depth of 1.5 inches and a standard coverage width of 36 inches. Its 6-inch rib spacing (center to center) and overall material width of 39 inches allow for secure overlaps and strong composite action with poured concrete slabs.
Gauges and thicknesses
| Gauge | Bare steel thickness (in) | Weight (lbs/sq ft) | Typical applications |
|---|---|---|---|
| 22 | 0.0295 | 1.6 | Light-duty spans. |
| 20 | 0.0358 | 2 | Medium spans. |
| 18 | 0.0474 | 2.6 | Heavy-duty applications. |
| 16 | 0.0598 | 3 | Heavy load spans. |
The 1.5" Composite Floor Deck is available in gauges 22, 20, 18, and 16, providing versatile options for load and span requirements. Thinner gauges (22 and 20) are lightweight and economical. Thicker gauges (18 and 16) deliver increased structural strength for heavier loads.
Finishes and coatings
| Finish | Details |
|---|---|
| Galvanized G60 | Zinc coating of 0.6 oz/ft². Recommended for general environments. |
| Galvanized G90 | Zinc coating of 0.9 oz/ft². Ideal for highly corrosive environments. |
| Prime-Painted | Provides a base coat for additional protection or paint adhesion. |
| Bare Steel | Unfinished; typically for indoor use or controlled environments. |
The 1.5" Composite Floor Deck is available in galvanized (G60 and G90) and prime-painted finishes. Galvanized finishes deliver superior corrosion resistance. The prime-painted option provides a protective base coat for projects requiring additional coatings. G60 and G90 finishes conform to ASTM A653 specifications.
Material and finish options
Choose from our high-strength steel 1.5" Composite Floor Deck, available in galvanized finishes meeting SDI/ANSI standards, painted finishes for enhanced aesthetics, or bare steel for specialized applications. Each option ensures durability and reliable performance.
Custom lengths
Whether you require precise deck lengths ranging from 6′-0″ for smaller projects or extensive spans up to 40′-0″ for larger constructions, we cater to all dimensions with precision and efficiency. Our custom length service ensures optimal fit and minimal waste.
1.5" Composite Floor Deck features
Optimize your floor systems with our 1.5" Composite Floor Deck, delivering reliable concrete bonding, fire resistance compatibility, and SDI-compliant performance for commercial and residential construction.
High Strength-to-Weight Ratio
Offers exceptional load capacity while minimizing weight, ideal for composite floor systems.
Enhanced Structural Efficiency
Works with concrete to form a composite system, providing superior strength through concrete bonding.
Galvanized or Prime-Painted Finish
G60/G90 galvanized or prime-painted finishes for enhanced durability and corrosion resistance.
Fire Resistance Compatibility
Supports fireproofing materials and fire ratings, offering enhanced safety for commercial and residential projects.
Compliance with SDI Standards
Meets Steel Deck Institute (SDI) and ANSI guidelines, ensuring quality and code compliance.
Optimized for Spans
Available in 22, 20, 18, and 16 gauges with minimal deflection for composite floor applications.
Installation and connections
Installation practices
- Attach perpendicular to supports.
- Use puddle welds (5/8" diameter) or #10 TEK screws at 6" on edges.
- Secure sidelaps with #10 TEK screws at 12" o.c.
Fasteners and attachments
- 5/8" Diameter Puddle Welds
- #10 TEK screws at 6" o.c. on edges
- Sidelaps attached using #10 TEK screws at 12" o.c.
Confirm the profile, gauge, span, loads and connections against your project drawings and the applicable product load tables before ordering.
Applications
Composite Floor Systems
Bonds with concrete slabs to reduce deflection and increase strength. Acts as permanent formwork while providing composite structural behavior.
Mezzanine Flooring
Provides a durable base for mezzanine floors in warehouses and commercial buildings, supporting heavy loads with efficient installation.
Standards and product documentation
The 1.5" Composite Floor Deck complies with SDI (Steel Deck Institute) specifications and ANSI standards, ensuring high standards for design and performance.
1.5" Composite Floor Deck questions
What is the primary use of the 1.5" Composite Floor Deck?
Designed to support concrete slabs, acting as permanent formwork while creating a composite system that enhances structural strength and load-bearing capacity.
What gauges are available?
Available in gauges ranging from 22 GA to 16 GA, with thicker gauges better for heavier loads and longer spans.
What finishes are offered?
Options include galvanized (G60 or G90) for superior corrosion resistance, prime-painted, and bare steel.
Can it accommodate custom lengths?
Yes, can be cut to lengths ranging from 6'-0" to 40'-0", ensuring minimal waste.
What makes the 1.5" composite deck suitable for floor applications?
The embossed rib profile provides mechanical bonding with concrete, creating a structural composite slab that shares load between the steel deck and concrete.
2" Composite Floor Deck
2" Composite Floor Deck is a versatile solution for floor systems, providing excellent composite bonding with concrete for enhanced strength. With a 2-inch depth and gauges ranging from 22 GA to 16 GA, it accommodates heavier loads and longer spans.

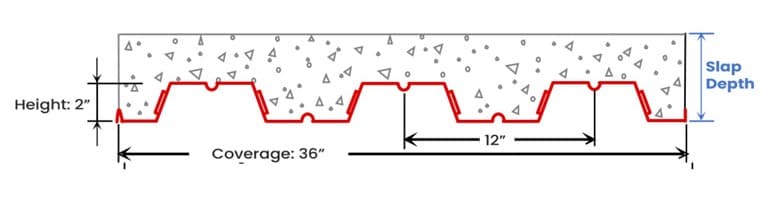

Dimensions and profile
| Property | Dimension |
|---|---|
| Profile Depth | 2 inches |
| Coverage Width | 36 inches |
| Rib Spacing | 12 inches (center to center) |
| Rib Height | 2 inches |
The 2" Composite Floor Deck features a rib depth of 2 inches and a standard coverage width of 36 inches. Its rib spacing of 12 inches (center to center) and overall material width allow for secure overlaps and excellent concrete bonding. This profile is engineered for maximum load capacity and extended spans.
Gauges and thicknesses
| Gauge | Bare steel thickness (in) | Weight (lbs/sq ft) | Typical applications |
|---|---|---|---|
| 22 | 0.0295 | 1.6 | Light-duty roofing and small spans. |
| 20 | 0.0358 | 2 | Medium spans, roofing, and siding. |
| 18 | 0.0474 | 2.6 | Heavy-duty applications. |
| 16 | 0.0598 | 3 | Heavy load spans. |
The 2" Composite Floor Deck is available in gauges ranging from 22 to 16, providing versatile options for different load and span requirements. Thinner gauges (22 and 20) are lightweight and economical, making them ideal for shorter spans and lighter loads. Thicker gauges (18 and 16) deliver increased structural strength, capable of supporting longer spans and heavier loads.
Finishes and coatings
| Finish | Details |
|---|---|
| Galvanized G60 | Zinc coating of 0.6 oz/ft². Recommended for general environments. |
| Galvanized G90 | Zinc coating of 0.9 oz/ft². Ideal for highly corrosive environments. |
| Prime-Painted | Provides a base coat for additional protection or paint adhesion. |
| Bare Steel | Unfinished; typically for indoor use or controlled environments. |
To ensure durability and long-term performance, the 2" Composite Floor Deck is available in multiple finishes, including galvanized (G60 and G90) and prime-painted. Galvanized finishes deliver superior corrosion resistance. The prime-painted option provides a protective base coat, ideal for projects requiring additional paint or coatings.
Material and finish options
Choose from our high-performance 50 KSI steel 2" Composite Floor Deck, available in galvanized finishes meeting SDI/ANSI standards, painted finishes for enhanced aesthetics, or bare steel for specialized applications. Each option ensures durability and reliable performance in diverse construction settings.
Custom lengths
Whether you require precise deck lengths ranging from 6′-0″ for smaller projects or extensive spans up to 40′-0″ for larger constructions, we cater to all dimensions with precision and efficiency. Our custom length service is designed to meet your specific requirements, ensuring optimal fit and minimal waste.
2" Composite Floor Deck features
Optimize your floor systems with our 2" Composite Floor Deck, delivering high load-bearing capacity, enhanced structural efficiency, and reliable concrete bonding. Perfect for heavy-duty, efficient, and sustainable floor construction.
High Load-Bearing Capacity
Engineered to handle heavier loads, ideal for industrial floors and demanding applications.
Enhanced Structural Efficiency
Works with concrete to form a composite system, providing superior strength and reducing floor thickness.
Galvanized or Prime-Painted Finish
G60/G90 galvanized or prime-painted finishes for durability and corrosion resistance.
Reduced Concrete Volume
Minimizes concrete use, lowering material costs without sacrificing strength.
Compliance with SDI Standards
Meets Steel Deck Institute (SDI) and ANSI guidelines, ensuring quality and code compliance.
Optimized for Long Spans
Capable of spanning longer distances with minimal deflection.
Installation and connections
Installation practices
- Install deck perpendicular to supports.
- Weld or screw deck at each support with puddle welds or TEK screws.
- Overlap sidelaps and secure with screws at 12" o.c.
Fasteners and attachments
- 5/8" Diameter Puddle Welds
- Fasten edges with #10 TEK screws spaced 6" o.c.
- Sidelaps attached using #10 TEK screws at 12" o.c.
Confirm the profile, gauge, span, loads and connections against your project drawings and the applicable product load tables before ordering.
Applications
Composite Floor Systems
Bonds with concrete slabs to reduce deflection and increase strength for heavy-duty floors in multi-story commercial and residential construction.
Mezzanine Flooring
Provides a durable base supporting heavy loads with efficient installation for warehouses and industrial mezzanine systems.
Standards and product documentation
The 2" Composite Floor Deck complies with SDI (Steel Deck Institute) specifications, ensuring high standards for design and performance.
2" Composite Floor Deck questions
What is the primary use of the 2" Composite Floor Deck?
Designed to support concrete slabs, acting as permanent formwork while creating a composite system that enhances structural strength and load-bearing capacity.
What gauges are available?
Available in gauges ranging from 22 GA to 16 GA, with thicker gauges better for heavier loads and longer spans.
What finishes are offered?
Options include galvanized (G60 or G90) for superior corrosion resistance, prime-painted, and bare steel.
Can it accommodate custom lengths?
Yes, can be cut to lengths ranging from 6'-0" to 40'-0", ensuring minimal waste.
What makes it suitable for demanding applications?
Deeper profile (2 inches) allows support for greater spans and heavier loads compared to shallower decks.
3" Composite Floor Deck
3" Composite Floor Deck is an excellent choice for floor systems requiring longer spans and greater load capacity. With a 3-inch depth and gauges ranging from 22 GA to 16 GA, it provides superior strength and durability. This deck meets SDI and ANSI standards and is available with galvanized finishes like G60 and G90 for enhanced corrosion resistance.

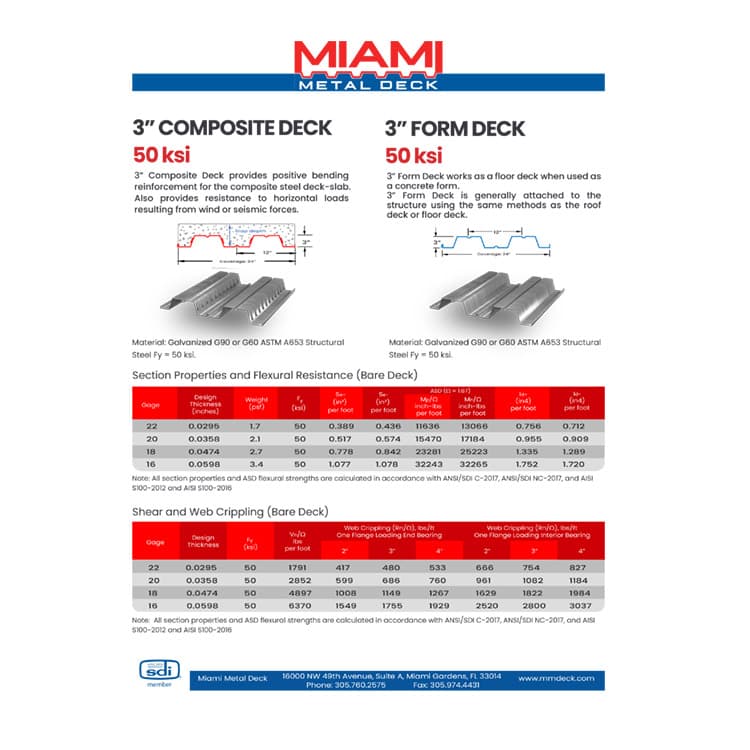

Dimensions and profile
| Property | Dimension |
|---|---|
| Profile Depth | 3 inches |
| Coverage Width | 36 inches |
| Rib Spacing | 12 inches (center to center) |
| Rib Height | 3 inches |
The 3" Composite Floor Deck features a rib depth of 3 inches and a standard coverage width of 36 inches, designed for superior strength in heavy-duty composite floor systems. With rib spacing of 12 inches (center to center) and an overall material width of 36 inches, it ensures efficient overlaps and excellent concrete bonding. This profile is engineered for maximum load capacity and extended spans, making it ideal for demanding construction applications.
Gauges and thicknesses
| Gauge | Bare steel thickness (in) | Weight (lbs/sq ft) | Typical applications |
|---|---|---|---|
| 22 | 0.0295 | 1.6 | Light-duty roofing and small spans. |
| 20 | 0.0358 | 2 | Medium spans, roofing, and siding. |
| 18 | 0.0474 | 2.6 | Heavy-duty applications. |
| 16 | 0.0598 | 3 | Heavy load spans. |
The 3" Composite Floor Deck is available in gauges ranging from 22 to 16, providing versatile options for different load and span requirements. Thinner gauges (22 and 20) are lightweight and economical, making them ideal for shorter spans and lighter loads. Thicker gauges (18 and 16) deliver increased structural strength, capable of supporting longer spans and heavier loads, ensuring reliability in more demanding applications.
Finishes and coatings
| Finish | Details |
|---|---|
| Galvanized G60 | Zinc coating of 0.6 oz/ft². Recommended for general environments. |
| Galvanized G90 | Zinc coating of 0.9 oz/ft². Ideal for highly corrosive environments. |
| Prime-Painted | Provides a base coat for additional protection or paint adhesion. |
| Bare Steel | Unfinished; typically for indoor use or controlled environments. |
To ensure durability and long-term performance, the 3" Composite Floor Deck is available in multiple finishes, including galvanized (G60 and G90) and prime-painted. Galvanized finishes deliver superior corrosion resistance, with G90 offering higher zinc coating for environments with greater exposure to moisture or chemicals. The prime-painted option provides a protective base coat, ideal for projects requiring additional paint or coatings.
Material and finish options
Choose from our high-performance 50 KSI steel 3" Composite Floor Deck, available in galvanized finishes meeting SDI/ANSI standards, painted finishes for enhanced aesthetics, or bare steel for specialized applications. Each option ensures durability and reliable performance in diverse construction settings.
Custom lengths
Whether you require precise deck lengths ranging from 6′-0″ for smaller projects or extensive spans up to 40′-0″ for larger constructions, we cater to all dimensions with precision and efficiency. Our custom length service is designed to meet your specific requirements, ensuring optimal fit and minimal waste.
3" Composite Floor Deck features
Optimize your projects with our 3" Composite Floor Deck, delivering unmatched strength, extended spans, and reliable concrete bonding. Perfect for heavy-duty, efficient, and sustainable floor systems.
Superior Load-Bearing Strength
Engineered to handle heavy loads, making it ideal for industrial applications and demanding construction environments.
Enhanced Structural Efficiency
Works in harmony with concrete to create a composite system, reducing floor thickness while maximizing strength.
Galvanized or Prime-Painted Finish
Choose G60/G90 galvanized or prime-painted finishes for enhanced durability and corrosion resistance.
Fire Resistance Compatibility
Supports fireproofing materials and fire ratings, offering enhanced safety for commercial and residential projects.
Compliance with SDI Standards
Meets Steel Deck Institute (SDI) and ANSI guidelines, ensuring quality and code compliance.
Extended Span Capability
The 3-inch profile supports longer spans, reducing the need for additional structural supports in large-scale projects.
Installation and connections
Installation practices
- Install the deck perpendicular to the supports.
- Weld or screw the deck at each support with puddle welds or TEK screws.
- Overlap sidelaps and secure with screws at 12" o.c.
Fasteners and attachments
- 5/8" Diameter Puddle Welds
- #10 TEK screws at 6" o.c. on edges, and 12" o.c. for sidelaps
- Sidelaps attached using #10 TEK screws at 12" o.c.
Confirm the profile, gauge, span, loads and connections against your project drawings and the applicable product load tables before ordering.
Applications
Long-Span Composite Floors
The 3" Composite Floor Deck is designed for long spans, reducing the need for columns. It enhances structural efficiency and supports heavy loads in warehouses, distribution centers, and large commercial spaces.
Heavy Equipment Platforms
The 3" Composite Floor Deck creates durable platforms for heavy machinery. It handles concentrated loads and improves load distribution for industrial facilities and manufacturing plants.
Standards and product documentation
The 3" composite floor deck complies with SDI (Steel Deck Institute) specifications, ensuring high standards for design and performance.
3" Composite Floor Deck questions
What is the primary purpose of the 3" Composite Floor Deck?
The 3" Composite Floor Deck provides exceptional structural support for concrete slabs, acting as permanent formwork and creating a composite system ideal for long spans and heavy loads.
What gauges are available for the 3" Composite Floor Deck?
It is available in gauges ranging from 22 GA to 16 GA, offering flexibility for various load capacities and structural requirements.
What finishes are offered for the 3" Composite Floor Deck?
It comes in galvanized (G60 or G90) finishes for corrosion resistance, prime-painted for projects needing additional coatings, and bare steel for specific applications.
Can the 3" Composite Floor Deck be customized to specific lengths?
Yes, it can be custom-cut to lengths ranging from 6'-0" to 40'-0", ensuring a perfect fit and reducing material waste on site.
Why choose the 3" Composite Floor Deck for large-scale projects?
Its deeper profile (3 inches) supports longer spans and heavier loads, making it the preferred choice for industrial facilities, warehouses, and multi-story construction projects requiring maximum durability.
9/16" Type S Form Deck
Type S Form Deck is commonly used as permanent formwork for concrete slabs in floor and roof systems due to its strength and simplicity in installation. Available in gauges from 28 GA to 20 GA with SDI and ANSI compliant manufacturing.
Dimensions and profile
| Property | Dimension |
|---|---|
| Profile Depth | 9/16 inches |
| Coverage Width | 36 inches |
| Rib Spacing | 2.57 inches (center to center) |
| Rib Height | 9/16 inches |
The Type S Form Deck features a shallow 9/16-inch rib depth and a standard coverage width of 36 inches, making it ideal for rapid concrete slab forming. Its rib spacing of 2.57 inches (center to center) provides a stable forming surface that minimizes concrete volume while ensuring structural integrity.
Gauges and thicknesses
| Gauge | Bare steel thickness (in) | Weight (lbs/sq ft) | Typical applications |
|---|---|---|---|
| 28 | 0.0149 | 0.65 | Light-duty concrete formwork, low-load applications. |
| 26 | 0.0179 | 0.75 | Standard concrete slabs. |
| 24 | 0.0239 | 1.0 | Medium-duty floor and roof slabs. |
| 22 | 0.0299 | 1.25 | Medium-duty floors, multi-level buildings. |
| 20 | 0.0358 | 1.5 | Heavy-duty formwork, bridges. |
The Type S Form Deck is available in gauges 28, 26, 24, 22, and 20. Lighter gauges (28 and 26) are cost-effective for standard concrete slabs. Heavier gauges (22 and 20) provide superior strength for longer spans and heavier concrete loads in demanding applications like bridges and industrial floors.
Finishes and coatings
| Finish | Details |
|---|---|
| Galvanized G60 | Zinc coating of 0.6 oz/ft². Recommended for general environments. |
| Galvanized G90 | Zinc coating of 0.9 oz/ft². Ideal for highly corrosive environments. |
| Prime-Painted | Provides a base coat for additional protection or paint adhesion. |
| Bare Steel | Unfinished; typically for indoor use or controlled environments. |
The Type S Form Deck comes in galvanized (G60 and G90) and prime-painted finishes. Galvanized coatings offer corrosion resistance, with G90 providing extra protection for highly corrosive environments. G60 and G90 finishes conform to ASTM A653 specifications.
Material and finish options
Choose from our high-strength 80 KSI steel Type S Form Deck, available with a corrosion-resistant galvanized finish meeting SDI/ANSI standards, a variety of painted finishes for tailored aesthetics, or bare steel for custom applications. Each finish is designed to enhance durability and maintain performance in demanding environments.
Custom lengths
Whether you require precise deck lengths ranging from 6′-0″ for smaller projects or extensive spans up to 40′-0″ for larger constructions, we cater to all dimensions with precision and efficiency. Our custom length service is designed to meet your specific requirements, ensuring optimal fit and minimal waste.
9/16" Type S Form Deck features
Elevate your projects with our Type S Form Deck, featuring high structural strength, efficient concrete formwork capabilities, and corrosion-resistant finishes. Cost-effective and versatile for multi-level buildings, bridges, and tunnel construction.
High Structural Strength
Engineered for superior concrete slab support, providing structural strength and stability during and after concrete placement.
Efficient Concrete Formwork
Rapid construction form deck ideal for slab forming in multi-level buildings, bridges, and tunnels reduces labor time and material costs.
Galvanized or Prime-Painted Finish
G60/G90 galvanized or prime-painted finishes for enhanced durability and corrosion resistance in demanding environments.
Cost-Effective Solution
Lightweight shallow profile minimizes concrete use while providing a stable forming surface, reducing overall project costs.
Compliance with SDI Standards
Meets Steel Deck Institute (SDI) and ANSI guidelines, ensuring quality and code compliance.
Versatile Design Options
Available in gauges 28 through 20, with G60/G90 galvanized coatings and custom lengths from 6 to 40 feet.
Installation and connections
Installation practices
- Install the deck perpendicular to the supports.
- Fasten using pins, powder-actuated fasteners, or TEK screws at each support.
- Overlap sidelaps and secure with screws at 12" o.c.
Fasteners and attachments
- Pins or powder-actuated fasteners to secure deck to supports
- #10 TEK screws at 6" o.c. on edges and 12" o.c. for sidelaps
- Sidelaps attached using button punching or #10 TEK screws at 12" o.c.
Confirm the profile, gauge, span, loads and connections against your project drawings and the applicable product load tables before ordering.
Applications
Composite Floor Slabs
Ideal for slab forming in multi-level buildings, bridges, and tunnels. The shallow rib profile minimizes concrete volume while providing a stable, efficient forming surface.
Bridge and Tunnel Formwork
Type S Form Deck is widely used as permanent concrete formwork in bridge decks and tunnel construction, providing structural support during concrete placement.
Standards and product documentation
The Type S Form Deck complies with SDI (Steel Deck Institute) specifications and ANSI standards, ensuring high standards for design and performance.
9/16" Type S Form Deck questions
What is the purpose of Type S form deck?
Type S form deck serves as permanent formwork for concrete slabs in floor and roof systems, providing a stable base during concrete placement and remaining in place after curing.
What is the difference between form deck and composite deck?
Form deck acts only as formwork the concrete slab carries the load independently after curing. Composite deck bonds structurally with the concrete to share load permanently.
What gauges are available for Type S form deck?
Available in gauges 28, 26, 24, 22, and 20 GA with thickness ranging from 0.0149" to 0.0358".
What fastening methods are recommended?
Type S Form Deck is attached using pins, powder-actuated fasteners, or TEK screws. Sidelaps are secured with button punching or #10 TEK screws at 12" o.c.
Can Type S form deck be cut to custom lengths?
Yes, available in custom lengths from 6'-0" to 40'-0", minimizing material waste and ensuring a precise fit for each project.
1" Type HD Form Deck
Type HD Form Deck is designed for heavy-duty concrete formwork in floors and roofs, providing superior support and durability. Available in gauges from 26 GA to 20 GA, it efficiently handles greater loads and longer spans. This deck meets SDI and ANSI standards and is offered in galvanized finishes like G60 and G90 for enhanced corrosion resistance.
Dimensions and profile
| Property | Dimension |
|---|---|
| Profile Depth | 1 inch |
| Coverage Width | 36 inches |
| Rib Spacing | 4 inches (center to center) |
| Rib Height | 1 inch |
The Type HD Form Deck features a rib depth of 1 inch and a standard coverage width of 36 inches, making it perfect for heavy-duty concrete formwork in floors and roofs. Its rib spacing of 4 inches (center to center) and overall material width of 39 inches ensure secure overlaps and excellent concrete support. This profile is designed to handle greater loads while reducing material costs, providing strength and durability for demanding construction projects.
Gauges and thicknesses
| Gauge | Bare steel thickness (in) | Weight (lbs/sq ft) | Typical applications |
|---|---|---|---|
| 26 | 0.0179 | 0.75 | Light-duty concrete formwork, low-load floors. |
| 24 | 0.0239 | 1.0 | Standard floors, light industrial applications. |
| 22 | 0.0299 | 1.25 | Medium-duty floors, parking structures. |
| 20 | 0.0359 | 1.5 | Heavy-duty formwork, bridges, industrial slabs. |
The Type HD Form Deck is available in a range of gauges, including 26, 24, 22, and 20. Lighter gauges (26 and 24) are cost-effective and ideal for standard concrete slabs and moderate spans. Heavier gauges (22 and 20) provide superior strength and support for longer spans and heavier concrete loads, making them perfect for demanding applications like industrial floors, bridges, and parking structures.
Finishes and coatings
| Finish | Details |
|---|---|
| Galvanized G60 | Zinc coating of 0.6 oz/ft². Recommended for general environments. |
| Galvanized G90 | Zinc coating of 0.9 oz/ft². Ideal for highly corrosive environments. |
| Prime-Painted | Provides a base coat for additional protection or paint adhesion. |
| Bare Steel | Unfinished; typically for indoor use or controlled environments. |
To ensure durability and long-term performance, the Type HD Form Deck is offered in multiple finish options, including galvanized (G60 and G90) and prime-painted. The galvanized coating provides excellent corrosion resistance, with G90 offering a thicker zinc layer for protection in high-moisture or chemical environments. The prime-painted finish adds a protective base coat. G60 and G90 finishes conform to ASTM A653 specifications.
Material and finish options
Choose from our high-strength 80 KSI steel Type HD Deck, available with a corrosion-resistant galvanized finish meeting SDI/ANSI standards, a variety of painted finishes for tailored aesthetics, or bare steel for custom applications. Each finish is designed to enhance durability and maintain performance in demanding environments.
Custom lengths
Whether you require precise deck lengths ranging from 6′-0″ for smaller projects or extensive spans up to 40′-0″ for larger constructions, we cater to all dimensions with precision and efficiency. Our custom length service is designed to meet your specific requirements, ensuring optimal fit and minimal waste.
1" Type HD Form Deck features
Elevate your projects with our 1" Type HD Form Deck, featuring heavy-duty load support, efficient concrete bonding, and enhanced durability. Ideal for industrial floors, bridge formwork, and demanding structural applications.
Heavy-Duty Load Support
Engineered to handle higher concrete loads, the Type HD Form Deck is ideal for projects requiring superior strength and stability.
Efficient Concrete Bonding
Designed with a deep profile to support thicker concrete slabs, ensuring better load distribution and long-term performance.
Galvanized or Prime-Painted Finish
Choose G60/G90 galvanized or prime-painted finishes for enhanced durability and corrosion resistance.
Cost-Effective Formwork Solution
Ideal for heavy-duty applications like parking structures, bridge formwork, and industrial floors, adapting easily to complex construction needs.
Compliance with SDI Standards
Meets Steel Deck Institute (SDI) and ANSI guidelines, ensuring quality and code compliance.
Versatile Gauge Options
Available in 26 GA to 20 GA, offering flexibility to meet specific load requirements while maintaining durability.
Installation and connections
Installation practices
- Install the deck perpendicular to the supports.
- Fasten the deck at each support using pins, powder-actuated fasteners, or TEK screws.
- Overlap sidelaps and secure with screws at 12" o.c.
Fasteners and attachments
- Pins or powder-actuated fasteners are used to secure the deck to supports
- #10 TEK screws at 6" o.c. on edges and 12" o.c. for sidelaps
- Sidelaps attached using button punching or #10 TEK screws at 12" o.c.
Confirm the profile, gauge, span, loads and connections against your project drawings and the applicable product load tables before ordering.
Applications
Heavy Industrial Floor Systems
Type HD Form Deck is ideal for heavy industrial floors, providing strong support for high-load equipment and machinery. Its durable design ensures long-term performance in demanding industrial environments.
Bridge and Highway Formwork
Type HD Form Deck is commonly used in bridge and highway construction as permanent formwork. It supports heavy concrete loads during placement and adds lasting strength to the structure.
Standards and product documentation
The Type HD Form Deck complies with SDI (Steel Deck Institute) specifications, ensuring high standards for design and performance.
1" Type HD Form Deck questions
What is the primary use of Type HD Form Deck?
The Type HD Form Deck is primarily used as permanent formwork for heavy-duty concrete slabs in industrial floors, bridges, and infrastructure projects. It supports wet concrete during placement and remains in place after curing.
What gauges are available for Type HD Form Deck?
The Type HD Form Deck is available in gauges 26 GA, 24 GA, 22 GA, and 20 GA, providing options for various load capacities and project requirements.
Does Type HD Form Deck require temporary shoring?
Yes, temporary shoring may be required during installation to support the weight of the deck and wet concrete until the slab fully cures.
What fastening methods are recommended for installation?
Type HD Form Deck is typically attached using pins, powder-actuated fasteners, or TEK screws. Button punching or screws at 12" o.c. are used to secure sidelaps.
Can Type HD Form Deck be cut to custom lengths?
Yes, it is available in custom lengths ranging from 6'-0" to 40'-0", minimizing material waste and ensuring a precise fit for each project.

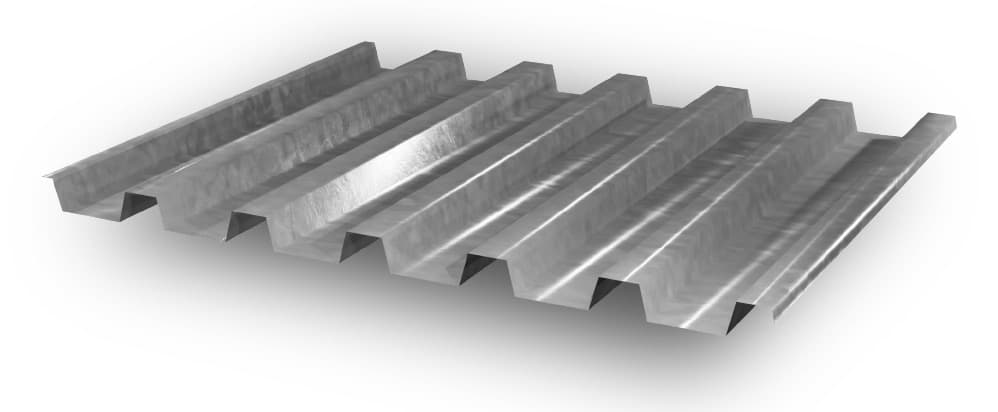

Type BI Inverted Form Deck
Type B Inverted Form Deck functions as permanent formwork for concrete slabs in floor and roof systems, available in gauges 22 GA through 16 GA. Designed specifically for architectural ceiling applications where the soffit is exposed.
Dimensions and profile
| Property | Dimension |
|---|---|
| Profile Depth | 1.5 inches |
| Coverage Width | 36 inches |
| Rib Spacing | 6 inches (center to center) |
| Rib Height | 1.5 inches |
The Type BI Inverted Form Deck features a rib depth of 1.5 inches and a standard coverage width of 36 inches. Installed with ribs pointing upward, it leaves a smooth flat soffit exposed below, creating an architectural ceiling surface without additional finishes. Its rib spacing of 6 inches (center to center) ensures structural integrity while accommodating concrete placement.
Gauges and thicknesses
| Gauge | Bare steel thickness (in) | Weight (lbs/sq ft) | Typical applications |
|---|---|---|---|
| 22 | 0.0299 | 1.25 | Light-duty floors and ceilings. |
| 20 | 0.0358 | 1.5 | Standard commercial floor systems. |
| 18 | 0.0474 | 2.6 | Heavy-duty applications, parking structures. |
| 16 | 0.0598 | 3.0 | Heavy load industrial floors. |
The Type BI Inverted Form Deck is available in gauges 22, 20, 18, and 16. Lighter gauges (22 and 20) are ideal for standard commercial applications. Heavier gauges (18 and 16) provide enhanced strength for parking structures and heavy industrial floor systems.
Finishes and coatings
| Finish | Details |
|---|---|
| Galvanized G60 | Zinc coating of 0.6 oz/ft². Recommended for general environments. |
| Galvanized G90 | Zinc coating of 0.9 oz/ft². Ideal for highly corrosive environments. |
| Prime-Painted | Provides a base coat for additional protection or paint adhesion. |
| Bare Steel | Unfinished; typically for indoor use or controlled environments. |
The Type BI Inverted Form Deck comes in galvanized (G60 and G90) and prime-painted finishes. Galvanized coatings offer corrosion resistance, with G90 providing extra protection for highly corrosive environments. G60 and G90 finishes conform to ASTM A653 specifications.
Material and finish options
Choose from our high-strength steel Type BI Inverted Form Deck, available with a corrosion-resistant galvanized finish meeting ANSI/SDI standards, a variety of painted finishes for tailored aesthetics, or bare steel for custom applications. Each finish is designed to enhance durability and maintain performance.
Custom lengths
Whether you require precise deck lengths ranging from 6′-0″ for smaller projects or extensive spans up to 40′-0″ for larger constructions, we cater to all dimensions with precision and efficiency. Our custom length service is designed to meet your specific requirements, ensuring optimal fit and minimal waste.
Type BI Inverted Form Deck features
Elevate your projects with our Type BI Inverted Form Deck, featuring high structural strength, efficient formwork, and corrosion-resistant finishes. Perfect for architectural ceilings, multi-level parking structures, and commercial floor systems requiring exposed soffits.
High Structural Strength
Supports concrete and live loads while providing an architecturally finished exposed ceiling surface.
Efficient Formwork
Reduces labor and construction time as permanent formwork for concrete slabs, eliminating the need for temporary form removal.
Corrosion Resistance
G60/G90 galvanized or prime-painted finishes for durable corrosion resistance in commercial environments.
Cost-Effective
Combines formwork and structural support in one product, reducing material and labor costs for exposed ceiling applications.
Compliance with Standards
Meets SDI and ANSI guidelines, ensuring quality and code compliance in all applications.
Versatile Options
Multiple gauges (22–16 GA) and finishes available for various load requirements and architectural specifications.
Installation and connections
Installation practices
- Install the deck perpendicular to the supports with ribs pointing upward.
- Fasten using pins, powder-actuated fasteners, or TEK screws at each support.
- Overlap sidelaps and secure with button punching or screws at 12" o.c.
Fasteners and attachments
- Pins or powder-actuated fasteners to secure deck to supports
- #10 TEK screws at 6" o.c. on edges
- Sidelaps attached using button punching or #10 TEK screws at 12" o.c.
Confirm the profile, gauge, span, loads and connections against your project drawings and the applicable product load tables before ordering.
Applications
Industrial Flooring with Exposed Ceiling
Type BI Inverted Form Deck provides strong support for industrial floor systems while delivering an architecturally finished exposed soffit ideal for schools, offices, and civic buildings.
Multi-Level Parking Structures
Commonly used in parking garage construction, providing permanent formwork with a clean exposed underside that reduces finishing costs.
Standards and product documentation
The Type BI Inverted Form Deck complies with SDI (Steel Deck Institute) specifications and ANSI standards, ensuring high standards for design and performance.
Type BI Inverted Form Deck questions
What applications use Type BI inverted form deck?
Type BI is used in architectural ceiling systems, multi-level parking structures, schools, offices, and facilities where an attractive exposed soffit is required.
How is Type BI form deck installed differently from standard form deck?
Type BI is installed with ribs pointing upward (inverted), leaving the flat side exposed below as a finished ceiling surface without the need for additional finishing materials.
What gauges are available?
Available in gauges 22, 20, 18, and 16 GA, providing options for different structural requirements.
What finish options are available?
Available in G60 and G90 galvanized finishes for corrosion resistance, and prime-painted finishes for additional protection.
Can Type BI be cut to custom lengths?
Yes, available in custom lengths from 6'-0" to 40'-0", ensuring a precise fit with minimal waste.
Planning your order
Steel Deck supply for Palm Bay
Send your project drawings or material list so our team can review quantities, profile requirements and cut lengths. We can help with takeoffs and shop drawings, then confirm pricing and delivery options for your Palm Bay project.
Send your project requirementsWhat to include in your quote request
- Product profile or series, dimensions, gauge and specified finish.
- Required quantities, sheet or member lengths, and project drawings.
- Project address in Palm Bay, delivery date and site access requirements.
- Any specified load tables, connection details or supporting documentation.
How We Work
We Guide You Through the Process
From manufacturing to delivery, we ensure precision, efficiency, and compliance with industry standards.
Takeoff and Shop Drawings Services
We provide specialized takeoff services for accurate quotations and detailed shop drawings to produce optimized cutting lists for sheets, ensuring efficient execution and waste-free outcomes in your projects.
Manufacture
We manufacture metal decks to SDI and ANSI standards, ensuring strength, durability, and compliance. We provide custom lengths and high-precision fabrication for optimized performance in roof, floor, and form deck applications.
Swift Deliveries & Nationwide Reach
While based in South Florida, we serve clients nationwide, ensuring quality, efficiency, and timely deliveries across the U.S., reflecting our commitment to excellence without boundaries.
Frequently Asked Questions
Where can I get steel deck in Palm Bay?
Miami Metal Deck delivers to Palm Bay with same-day pickup in Miami Gardens and 1-day delivery to most Florida cities. Call 305-760-2575.
Do you provide shop drawings?
Yes. We offer complete takeoff services, shop drawings, and optimized cutting lists for all steel deck orders.
What types of steel deck does Miami Metal Deck offer?
We offer roof deck (Type B, Vented Type B, Type N), composite floor deck in multiple profiles, and form deck (Type S, HD, BI). All products are available in various gauges and galvanized finishes.
What is the difference between roof deck and composite deck?
Roof deck is designed to support insulation and roofing systems. Composite deck acts structurally with poured concrete to create a load-bearing floor slab. Form deck is used as temporary or permanent concrete formwork.
What gauges and finishes are available?
We stock gauges from 16 to 28, depending on the product type. Galvanized finishes include G60 and G90 coatings. Custom lengths from 6 to 40 feet are available.
Do you provide takeoff and shop drawing services?
Yes. Our engineering team provides specialized takeoff services, detailed shop drawings, and optimized cutting lists to support accurate quotations and efficient project execution.
What standards do your products comply with?
All steel deck products comply with ANSI/SDI standards (RD-2017 for roof deck, C-2017 for composite floor deck, NC-2017 for non-composite form deck). We are a Steel Deck Institute member.
