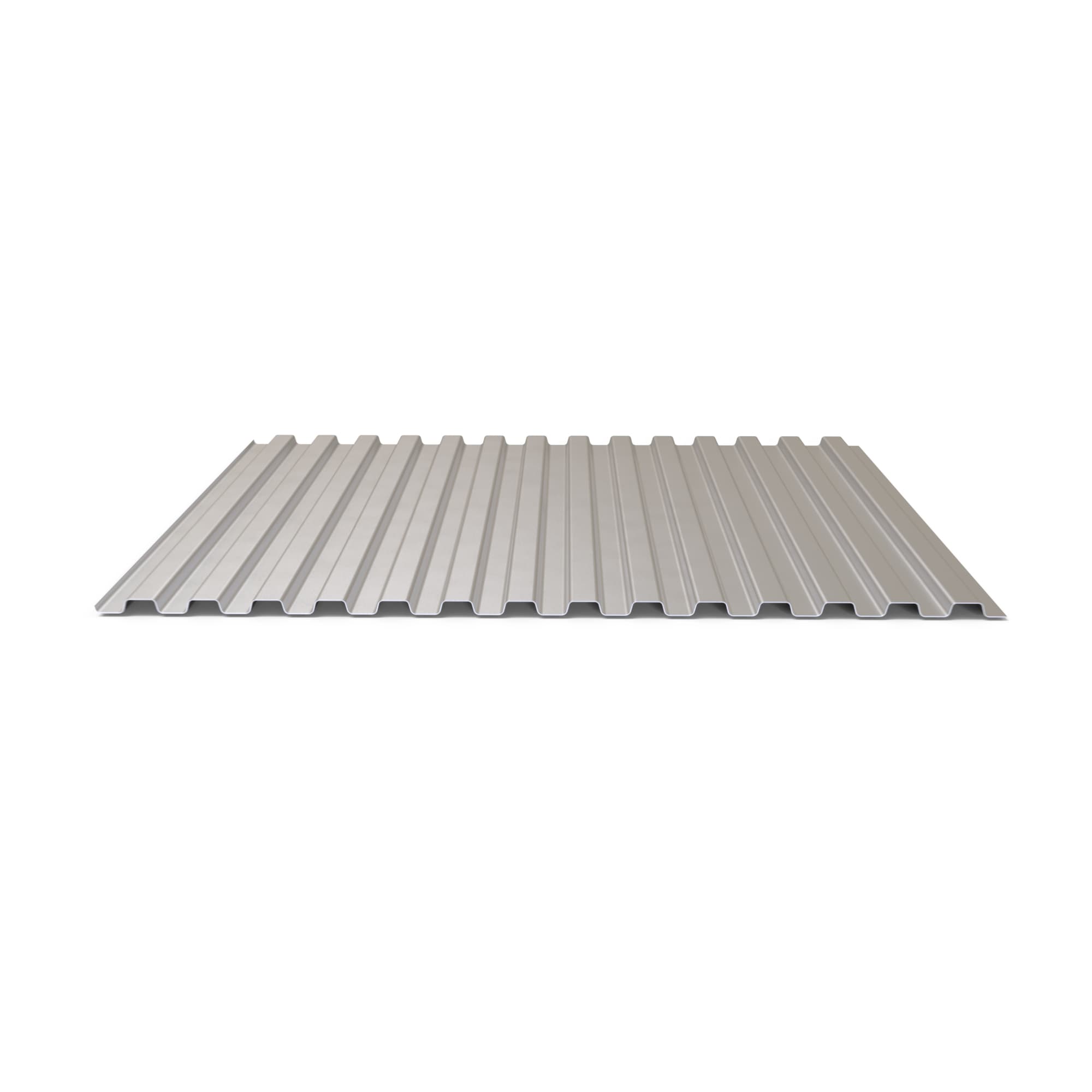

Metal form deck supplier in Fort Myers
Miami-produced metal form deck in Fort Myers the fundamental support for your project needs.
Product guide
Product specifications for your Fort Myers project
Compare profiles, dimensions, material options and applications to prepare your order. Select a product below to explore its technical details.
9/16" Type S Form Deck
Type S Form Deck is commonly used as permanent formwork for concrete slabs in floor and roof systems due to its strength and simplicity in installation. Available in gauges from 28 GA to 20 GA with SDI and ANSI compliant manufacturing.
Dimensions and profile
| Property | Dimension |
|---|---|
| Profile Depth | 9/16 inches |
| Coverage Width | 36 inches |
| Rib Spacing | 2.57 inches (center to center) |
| Rib Height | 9/16 inches |
The Type S Form Deck features a shallow 9/16-inch rib depth and a standard coverage width of 36 inches, making it ideal for rapid concrete slab forming. Its rib spacing of 2.57 inches (center to center) provides a stable forming surface that minimizes concrete volume while ensuring structural integrity.
Gauges and thicknesses
| Gauge | Bare steel thickness (in) | Weight (lbs/sq ft) | Typical applications |
|---|---|---|---|
| 28 | 0.0149 | 0.65 | Light-duty concrete formwork, low-load applications. |
| 26 | 0.0179 | 0.75 | Standard concrete slabs. |
| 24 | 0.0239 | 1.0 | Medium-duty floor and roof slabs. |
| 22 | 0.0299 | 1.25 | Medium-duty floors, multi-level buildings. |
| 20 | 0.0358 | 1.5 | Heavy-duty formwork, bridges. |
The Type S Form Deck is available in gauges 28, 26, 24, 22, and 20. Lighter gauges (28 and 26) are cost-effective for standard concrete slabs. Heavier gauges (22 and 20) provide superior strength for longer spans and heavier concrete loads in demanding applications like bridges and industrial floors.
Finishes and coatings
| Finish | Details |
|---|---|
| Galvanized G60 | Zinc coating of 0.6 oz/ft². Recommended for general environments. |
| Galvanized G90 | Zinc coating of 0.9 oz/ft². Ideal for highly corrosive environments. |
| Prime-Painted | Provides a base coat for additional protection or paint adhesion. |
| Bare Steel | Unfinished; typically for indoor use or controlled environments. |
The Type S Form Deck comes in galvanized (G60 and G90) and prime-painted finishes. Galvanized coatings offer corrosion resistance, with G90 providing extra protection for highly corrosive environments. G60 and G90 finishes conform to ASTM A653 specifications.
Material and finish options
Choose from our high-strength 80 KSI steel Type S Form Deck, available with a corrosion-resistant galvanized finish meeting SDI/ANSI standards, a variety of painted finishes for tailored aesthetics, or bare steel for custom applications. Each finish is designed to enhance durability and maintain performance in demanding environments.
Custom lengths
Whether you require precise deck lengths ranging from 6′-0″ for smaller projects or extensive spans up to 40′-0″ for larger constructions, we cater to all dimensions with precision and efficiency. Our custom length service is designed to meet your specific requirements, ensuring optimal fit and minimal waste.
9/16" Type S Form Deck features
Elevate your projects with our Type S Form Deck, featuring high structural strength, efficient concrete formwork capabilities, and corrosion-resistant finishes. Cost-effective and versatile for multi-level buildings, bridges, and tunnel construction.
High Structural Strength
Engineered for superior concrete slab support, providing structural strength and stability during and after concrete placement.
Efficient Concrete Formwork
Rapid construction form deck ideal for slab forming in multi-level buildings, bridges, and tunnels reduces labor time and material costs.
Galvanized or Prime-Painted Finish
G60/G90 galvanized or prime-painted finishes for enhanced durability and corrosion resistance in demanding environments.
Cost-Effective Solution
Lightweight shallow profile minimizes concrete use while providing a stable forming surface, reducing overall project costs.
Compliance with SDI Standards
Meets Steel Deck Institute (SDI) and ANSI guidelines, ensuring quality and code compliance.
Versatile Design Options
Available in gauges 28 through 20, with G60/G90 galvanized coatings and custom lengths from 6 to 40 feet.
Installation and connections
Installation practices
- Install the deck perpendicular to the supports.
- Fasten using pins, powder-actuated fasteners, or TEK screws at each support.
- Overlap sidelaps and secure with screws at 12" o.c.
Fasteners and attachments
- Pins or powder-actuated fasteners to secure deck to supports
- #10 TEK screws at 6" o.c. on edges and 12" o.c. for sidelaps
- Sidelaps attached using button punching or #10 TEK screws at 12" o.c.
Confirm the profile, gauge, span, loads and connections against your project drawings and the applicable product load tables before ordering.
Applications
Composite Floor Slabs
Ideal for slab forming in multi-level buildings, bridges, and tunnels. The shallow rib profile minimizes concrete volume while providing a stable, efficient forming surface.
Bridge and Tunnel Formwork
Type S Form Deck is widely used as permanent concrete formwork in bridge decks and tunnel construction, providing structural support during concrete placement.
Standards and product documentation
The Type S Form Deck complies with SDI (Steel Deck Institute) specifications and ANSI standards, ensuring high standards for design and performance.
9/16" Type S Form Deck questions
What is the purpose of Type S form deck?
Type S form deck serves as permanent formwork for concrete slabs in floor and roof systems, providing a stable base during concrete placement and remaining in place after curing.
What is the difference between form deck and composite deck?
Form deck acts only as formwork the concrete slab carries the load independently after curing. Composite deck bonds structurally with the concrete to share load permanently.
What gauges are available for Type S form deck?
Available in gauges 28, 26, 24, 22, and 20 GA with thickness ranging from 0.0149" to 0.0358".
What fastening methods are recommended?
Type S Form Deck is attached using pins, powder-actuated fasteners, or TEK screws. Sidelaps are secured with button punching or #10 TEK screws at 12" o.c.
Can Type S form deck be cut to custom lengths?
Yes, available in custom lengths from 6'-0" to 40'-0", minimizing material waste and ensuring a precise fit for each project.
1" Type HD Form Deck
Type HD Form Deck is designed for heavy-duty concrete formwork in floors and roofs, providing superior support and durability. Available in gauges from 26 GA to 20 GA, it efficiently handles greater loads and longer spans. This deck meets SDI and ANSI standards and is offered in galvanized finishes like G60 and G90 for enhanced corrosion resistance.
Dimensions and profile
| Property | Dimension |
|---|---|
| Profile Depth | 1 inch |
| Coverage Width | 36 inches |
| Rib Spacing | 4 inches (center to center) |
| Rib Height | 1 inch |
The Type HD Form Deck features a rib depth of 1 inch and a standard coverage width of 36 inches, making it perfect for heavy-duty concrete formwork in floors and roofs. Its rib spacing of 4 inches (center to center) and overall material width of 39 inches ensure secure overlaps and excellent concrete support. This profile is designed to handle greater loads while reducing material costs, providing strength and durability for demanding construction projects.
Gauges and thicknesses
| Gauge | Bare steel thickness (in) | Weight (lbs/sq ft) | Typical applications |
|---|---|---|---|
| 26 | 0.0179 | 0.75 | Light-duty concrete formwork, low-load floors. |
| 24 | 0.0239 | 1.0 | Standard floors, light industrial applications. |
| 22 | 0.0299 | 1.25 | Medium-duty floors, parking structures. |
| 20 | 0.0359 | 1.5 | Heavy-duty formwork, bridges, industrial slabs. |
The Type HD Form Deck is available in a range of gauges, including 26, 24, 22, and 20. Lighter gauges (26 and 24) are cost-effective and ideal for standard concrete slabs and moderate spans. Heavier gauges (22 and 20) provide superior strength and support for longer spans and heavier concrete loads, making them perfect for demanding applications like industrial floors, bridges, and parking structures.
Finishes and coatings
| Finish | Details |
|---|---|
| Galvanized G60 | Zinc coating of 0.6 oz/ft². Recommended for general environments. |
| Galvanized G90 | Zinc coating of 0.9 oz/ft². Ideal for highly corrosive environments. |
| Prime-Painted | Provides a base coat for additional protection or paint adhesion. |
| Bare Steel | Unfinished; typically for indoor use or controlled environments. |
To ensure durability and long-term performance, the Type HD Form Deck is offered in multiple finish options, including galvanized (G60 and G90) and prime-painted. The galvanized coating provides excellent corrosion resistance, with G90 offering a thicker zinc layer for protection in high-moisture or chemical environments. The prime-painted finish adds a protective base coat. G60 and G90 finishes conform to ASTM A653 specifications.
Material and finish options
Choose from our high-strength 80 KSI steel Type HD Deck, available with a corrosion-resistant galvanized finish meeting SDI/ANSI standards, a variety of painted finishes for tailored aesthetics, or bare steel for custom applications. Each finish is designed to enhance durability and maintain performance in demanding environments.
Custom lengths
Whether you require precise deck lengths ranging from 6′-0″ for smaller projects or extensive spans up to 40′-0″ for larger constructions, we cater to all dimensions with precision and efficiency. Our custom length service is designed to meet your specific requirements, ensuring optimal fit and minimal waste.
1" Type HD Form Deck features
Elevate your projects with our 1" Type HD Form Deck, featuring heavy-duty load support, efficient concrete bonding, and enhanced durability. Ideal for industrial floors, bridge formwork, and demanding structural applications.
Heavy-Duty Load Support
Engineered to handle higher concrete loads, the Type HD Form Deck is ideal for projects requiring superior strength and stability.
Efficient Concrete Bonding
Designed with a deep profile to support thicker concrete slabs, ensuring better load distribution and long-term performance.
Galvanized or Prime-Painted Finish
Choose G60/G90 galvanized or prime-painted finishes for enhanced durability and corrosion resistance.
Cost-Effective Formwork Solution
Ideal for heavy-duty applications like parking structures, bridge formwork, and industrial floors, adapting easily to complex construction needs.
Compliance with SDI Standards
Meets Steel Deck Institute (SDI) and ANSI guidelines, ensuring quality and code compliance.
Versatile Gauge Options
Available in 26 GA to 20 GA, offering flexibility to meet specific load requirements while maintaining durability.
Installation and connections
Installation practices
- Install the deck perpendicular to the supports.
- Fasten the deck at each support using pins, powder-actuated fasteners, or TEK screws.
- Overlap sidelaps and secure with screws at 12" o.c.
Fasteners and attachments
- Pins or powder-actuated fasteners are used to secure the deck to supports
- #10 TEK screws at 6" o.c. on edges and 12" o.c. for sidelaps
- Sidelaps attached using button punching or #10 TEK screws at 12" o.c.
Confirm the profile, gauge, span, loads and connections against your project drawings and the applicable product load tables before ordering.
Applications
Heavy Industrial Floor Systems
Type HD Form Deck is ideal for heavy industrial floors, providing strong support for high-load equipment and machinery. Its durable design ensures long-term performance in demanding industrial environments.
Bridge and Highway Formwork
Type HD Form Deck is commonly used in bridge and highway construction as permanent formwork. It supports heavy concrete loads during placement and adds lasting strength to the structure.
Standards and product documentation
The Type HD Form Deck complies with SDI (Steel Deck Institute) specifications, ensuring high standards for design and performance.
1" Type HD Form Deck questions
What is the primary use of Type HD Form Deck?
The Type HD Form Deck is primarily used as permanent formwork for heavy-duty concrete slabs in industrial floors, bridges, and infrastructure projects. It supports wet concrete during placement and remains in place after curing.
What gauges are available for Type HD Form Deck?
The Type HD Form Deck is available in gauges 26 GA, 24 GA, 22 GA, and 20 GA, providing options for various load capacities and project requirements.
Does Type HD Form Deck require temporary shoring?
Yes, temporary shoring may be required during installation to support the weight of the deck and wet concrete until the slab fully cures.
What fastening methods are recommended for installation?
Type HD Form Deck is typically attached using pins, powder-actuated fasteners, or TEK screws. Button punching or screws at 12" o.c. are used to secure sidelaps.
Can Type HD Form Deck be cut to custom lengths?
Yes, it is available in custom lengths ranging from 6'-0" to 40'-0", minimizing material waste and ensuring a precise fit for each project.
Type BI Inverted Form Deck
Type B Inverted Form Deck functions as permanent formwork for concrete slabs in floor and roof systems, available in gauges 22 GA through 16 GA. Designed specifically for architectural ceiling applications where the soffit is exposed.
Dimensions and profile
| Property | Dimension |
|---|---|
| Profile Depth | 1.5 inches |
| Coverage Width | 36 inches |
| Rib Spacing | 6 inches (center to center) |
| Rib Height | 1.5 inches |
The Type BI Inverted Form Deck features a rib depth of 1.5 inches and a standard coverage width of 36 inches. Installed with ribs pointing upward, it leaves a smooth flat soffit exposed below, creating an architectural ceiling surface without additional finishes. Its rib spacing of 6 inches (center to center) ensures structural integrity while accommodating concrete placement.
Gauges and thicknesses
| Gauge | Bare steel thickness (in) | Weight (lbs/sq ft) | Typical applications |
|---|---|---|---|
| 22 | 0.0299 | 1.25 | Light-duty floors and ceilings. |
| 20 | 0.0358 | 1.5 | Standard commercial floor systems. |
| 18 | 0.0474 | 2.6 | Heavy-duty applications, parking structures. |
| 16 | 0.0598 | 3.0 | Heavy load industrial floors. |
The Type BI Inverted Form Deck is available in gauges 22, 20, 18, and 16. Lighter gauges (22 and 20) are ideal for standard commercial applications. Heavier gauges (18 and 16) provide enhanced strength for parking structures and heavy industrial floor systems.
Finishes and coatings
| Finish | Details |
|---|---|
| Galvanized G60 | Zinc coating of 0.6 oz/ft². Recommended for general environments. |
| Galvanized G90 | Zinc coating of 0.9 oz/ft². Ideal for highly corrosive environments. |
| Prime-Painted | Provides a base coat for additional protection or paint adhesion. |
| Bare Steel | Unfinished; typically for indoor use or controlled environments. |
The Type BI Inverted Form Deck comes in galvanized (G60 and G90) and prime-painted finishes. Galvanized coatings offer corrosion resistance, with G90 providing extra protection for highly corrosive environments. G60 and G90 finishes conform to ASTM A653 specifications.
Material and finish options
Choose from our high-strength steel Type BI Inverted Form Deck, available with a corrosion-resistant galvanized finish meeting ANSI/SDI standards, a variety of painted finishes for tailored aesthetics, or bare steel for custom applications. Each finish is designed to enhance durability and maintain performance.
Custom lengths
Whether you require precise deck lengths ranging from 6′-0″ for smaller projects or extensive spans up to 40′-0″ for larger constructions, we cater to all dimensions with precision and efficiency. Our custom length service is designed to meet your specific requirements, ensuring optimal fit and minimal waste.
Type BI Inverted Form Deck features
Elevate your projects with our Type BI Inverted Form Deck, featuring high structural strength, efficient formwork, and corrosion-resistant finishes. Perfect for architectural ceilings, multi-level parking structures, and commercial floor systems requiring exposed soffits.
High Structural Strength
Supports concrete and live loads while providing an architecturally finished exposed ceiling surface.
Efficient Formwork
Reduces labor and construction time as permanent formwork for concrete slabs, eliminating the need for temporary form removal.
Corrosion Resistance
G60/G90 galvanized or prime-painted finishes for durable corrosion resistance in commercial environments.
Cost-Effective
Combines formwork and structural support in one product, reducing material and labor costs for exposed ceiling applications.
Compliance with Standards
Meets SDI and ANSI guidelines, ensuring quality and code compliance in all applications.
Versatile Options
Multiple gauges (22–16 GA) and finishes available for various load requirements and architectural specifications.
Installation and connections
Installation practices
- Install the deck perpendicular to the supports with ribs pointing upward.
- Fasten using pins, powder-actuated fasteners, or TEK screws at each support.
- Overlap sidelaps and secure with button punching or screws at 12" o.c.
Fasteners and attachments
- Pins or powder-actuated fasteners to secure deck to supports
- #10 TEK screws at 6" o.c. on edges
- Sidelaps attached using button punching or #10 TEK screws at 12" o.c.
Confirm the profile, gauge, span, loads and connections against your project drawings and the applicable product load tables before ordering.
Applications
Industrial Flooring with Exposed Ceiling
Type BI Inverted Form Deck provides strong support for industrial floor systems while delivering an architecturally finished exposed soffit ideal for schools, offices, and civic buildings.
Multi-Level Parking Structures
Commonly used in parking garage construction, providing permanent formwork with a clean exposed underside that reduces finishing costs.
Standards and product documentation
The Type BI Inverted Form Deck complies with SDI (Steel Deck Institute) specifications and ANSI standards, ensuring high standards for design and performance.
Type BI Inverted Form Deck questions
What applications use Type BI inverted form deck?
Type BI is used in architectural ceiling systems, multi-level parking structures, schools, offices, and facilities where an attractive exposed soffit is required.
How is Type BI form deck installed differently from standard form deck?
Type BI is installed with ribs pointing upward (inverted), leaving the flat side exposed below as a finished ceiling surface without the need for additional finishing materials.
What gauges are available?
Available in gauges 22, 20, 18, and 16 GA, providing options for different structural requirements.
What finish options are available?
Available in G60 and G90 galvanized finishes for corrosion resistance, and prime-painted finishes for additional protection.
Can Type BI be cut to custom lengths?
Yes, available in custom lengths from 6'-0" to 40'-0", ensuring a precise fit with minimal waste.
Planning your order
Metal Form Decks supply for Fort Myers
Send your project drawings or material list so our team can review quantities, profile requirements and cut lengths. We can help with takeoffs and shop drawings, then confirm pricing and delivery options for your Fort Myers project.
Send your project requirementsWhat to include in your quote request
- Product profile or series, dimensions, gauge and specified finish.
- Required quantities, sheet or member lengths, and project drawings.
- Project address in Fort Myers, delivery date and site access requirements.
- Any specified load tables, connection details or supporting documentation.
How We Work
We Guide You Through the Process
From manufacturing to delivery, we ensure precision, efficiency, and compliance with industry standards.
Takeoff and Shop Drawings Services
We provide specialized takeoff services for accurate quotations and detailed shop drawings to produce optimized cutting lists for sheets, ensuring efficient execution and waste-free outcomes in your projects.
Manufacture
We manufacture metal decks to SDI and ANSI standards, ensuring strength, durability, and compliance. We provide custom lengths and high-precision fabrication for optimized performance in roof, floor, and form deck applications.
Swift Deliveries & Nationwide Reach
While based in South Florida, we serve clients nationwide, ensuring quality, efficiency, and timely deliveries across the U.S., reflecting our commitment to excellence without boundaries.
Frequently Asked Questions
Do you supply form deck in Fort Myers?
Yes. We deliver form deck to Fort Myers with same-day or next-day service. Call 305-760-2575 for availability.
What is the difference between form deck and composite deck?
Form deck acts as temporary or permanent formwork the concrete carries the load after curing. Composite deck bonds structurally with the concrete to share load permanently.
What is the purpose of form deck?
Form deck serves as a temporary or permanent structural formwork for concrete slabs. It supports the weight of wet concrete during pouring and curing, providing a stable base for floor and roof slabs.
What is the difference between composite deck and form deck?
Composite deck is designed to bond with concrete and act as a structural element in the finished slab. Form deck acts only as formwork the concrete slab carries the load independently after curing.
What are the advantages of using form deck in multi-level construction?
Form deck speeds up construction by eliminating the need for temporary wood forms, reduces material waste, and provides a consistent, lightweight formwork system that can be left in place after the concrete cures.
What gauges and finishes are available?
We offer form deck in gauges from 16 to 28, with G60 and G90 galvanized finishes for corrosion resistance. Custom lengths from 6 to 40 feet are available.
