Supplying Metal Form Decks in Naples
Miami Metal Deck supplies Metal Form Decks to contractors, erectors and fabricators building in Naples and across Collier County and the Southwest Florida region. We ship to Naples from Miami Gardens, offering 1-day service to major Florida cities and coordinating freight with your site schedule.
With Naples's coastal humidity and salt air, many engineers specify a G90 galvanized finish for its heavier zinc coating; we confirm the finish against your project specifications. We supply to the gauges, lengths and finishes on your approved drawings, which are designed to the Florida Building Code requirements that apply in Collier County.
Product guide
Product specifications for your Naples project
Compare profiles, dimensions, material options and applications to prepare your order. Select a product below to explore its technical details.
9/16" Type S Form Deck
Permanent formwork for concrete slabs in floor and roof systems is the main job of Type S Form Deck, valued for its strength and easy installation. Contractors in Naples can order it in gauges from 28 GA to 20 GA, manufactured to SDI and ANSI standards.
Dimensions and profile

| Property | Dimension |
|---|---|
| Profile Depth | 9/16 inches |
| Coverage Width | 36 inches |
| Rib Spacing | 2.57 inches (center to center) |
| Rib Height | 9/16 inches |
With a shallow rib depth of 9/16 inch and a standard 36-inch coverage width, Type S Form Deck is well suited to quick concrete slab forming. Ribs sit 2.57 inches apart (center to center), giving a steady forming surface that limits concrete volume while keeping the structure sound.
Gauges and thicknesses
| Gauge | Bare steel thickness (in) | Weight (lbs/sq ft) | Typical applications |
|---|---|---|---|
| 28 | 0.0149 | 0.65 | Light-duty concrete formwork, low-load applications. |
| 26 | 0.0179 | 0.75 | Standard concrete slabs. |
| 24 | 0.0239 | 1.0 | Medium-duty floor and roof slabs. |
| 22 | 0.0299 | 1.25 | Medium-duty floors, multi-level buildings. |
| 20 | 0.0358 | 1.5 | Heavy-duty formwork, bridges. |
Type S Form Deck comes in gauges 28, 26, 24, 22, and 20. Gauges 28 and 26, the lighter ones, are economical for standard concrete slabs. Gauges 22 and 20 deliver greater strength for longer spans and heavier concrete loads, as in bridges and industrial floors.
Finishes and coatings
| Finish | Details |
|---|---|
| Galvanized G60 | Zinc coating of 0.6 oz/ft². Recommended for general environments. |
| Galvanized G90 | Zinc coating of 0.9 oz/ft². Ideal for highly corrosive environments. |
| Prime-Painted | Provides a base coat for additional protection or paint adhesion. |
| Bare Steel | Unfinished; typically for indoor use or controlled environments. |
Finish choices for Type S Form Deck are galvanized (G60 and G90) and prime-painted. The galvanized coatings resist corrosion, and G90 adds protection where conditions are highly corrosive. Both G60 and G90 conform to ASTM A653.
Material and finish options
Type S Form Deck uses high-strength 80 KSI steel and ships with a corrosion-resistant galvanized finish that meets SDI/ANSI standards. Painted finishes are offered for tailored aesthetics, and bare steel is available for custom applications. Each option is intended to extend durability and sustain performance in demanding environments.
Custom lengths
From 6′-0″ pieces for smaller projects to spans reaching 40′-0″ for larger construction, we supply the dimensions you need. Our custom length service is set up around your requirements, so the deck fits well and little material is wasted.
9/16" Type S Form Deck features
Type S Form Deck delivers high structural strength, efficient concrete forming, and corrosion-resistant finishes at a sensible price. It adapts well to multi-level buildings, bridges, and tunnels.
High Structural Strength
Designed to support concrete slabs, giving stability and structural strength during and after concrete placement.
Efficient Concrete Formwork
This quick-to-build form deck suits slab forming in multi-level buildings, bridges, and tunnels, and it reduces labor time and material costs.
Galvanized or Prime-Painted Finish
G60/G90 galvanized or prime-painted finishes add durability and corrosion resistance where conditions are demanding.
Cost-Effective Solution
A lightweight, shallow profile limits concrete use while offering a stable forming surface, so overall project costs drop.
Compliance with SDI Standards
Conforms to Steel Deck Institute (SDI) and ANSI guidelines, supporting quality and code compliance.
Versatile Design Options
Gauges 28 through 20, G60/G90 galvanized coatings, and custom lengths between 6 and 40 feet.
Installation and connections
Installation practices
- Place the deck at right angles to the supports.
- Attach it at every support with pins, powder-actuated fasteners, or TEK screws.
- Overlap the sidelaps and fasten them with screws at 12" o.c.
Fasteners and attachments
- Deck is secured to supports with pins or powder-actuated fasteners
- #10 TEK screws at 6" o.c. on edges and 12" o.c. for sidelaps
- Sidelaps are attached by button punching or by #10 TEK screws at 12" o.c.
Confirm the profile, gauge, span, loads and connections against your project drawings and the applicable product load tables before ordering.
Applications

Composite Floor Slabs
A good match for forming slabs in multi-level buildings, bridges, and tunnels. The shallow rib profile uses less concrete and gives an efficient, stable forming surface.

Bridge and Tunnel Formwork
Bridge decks and tunnel construction often use Type S Form Deck as permanent concrete formwork, since it supports the structure while concrete is being placed.
Standards and product documentation
Type S Form Deck is built to SDI (Steel Deck Institute) specifications and ANSI standards, which supports consistent design and performance for Naples projects.
9/16" Type S Form Deck questions
Why use Type S form deck?
Type S form deck acts as permanent formwork for concrete slabs in floor and roof systems. It gives a stable base while concrete is placed and stays put after curing.
Is form deck the same as composite deck?
No. Form deck serves only as formwork, so the cured concrete slab carries the load independently. Composite deck bonds structurally with the concrete and shares load permanently.
What are the Type S form deck gauge options?
28, 26, 24, 22, and 20 GA, with thickness from 0.0149" to 0.0358".
Which fastening methods work for Type S form deck?
Pins, powder-actuated fasteners, or TEK screws attach the deck. Button punching or #10 TEK screws at 12" o.c. secure the sidelaps.
Does Type S form deck come in custom lengths?
Yes, in lengths from 6'-0" to 40'-0". That reduces waste and fits each project precisely, including work in Naples.

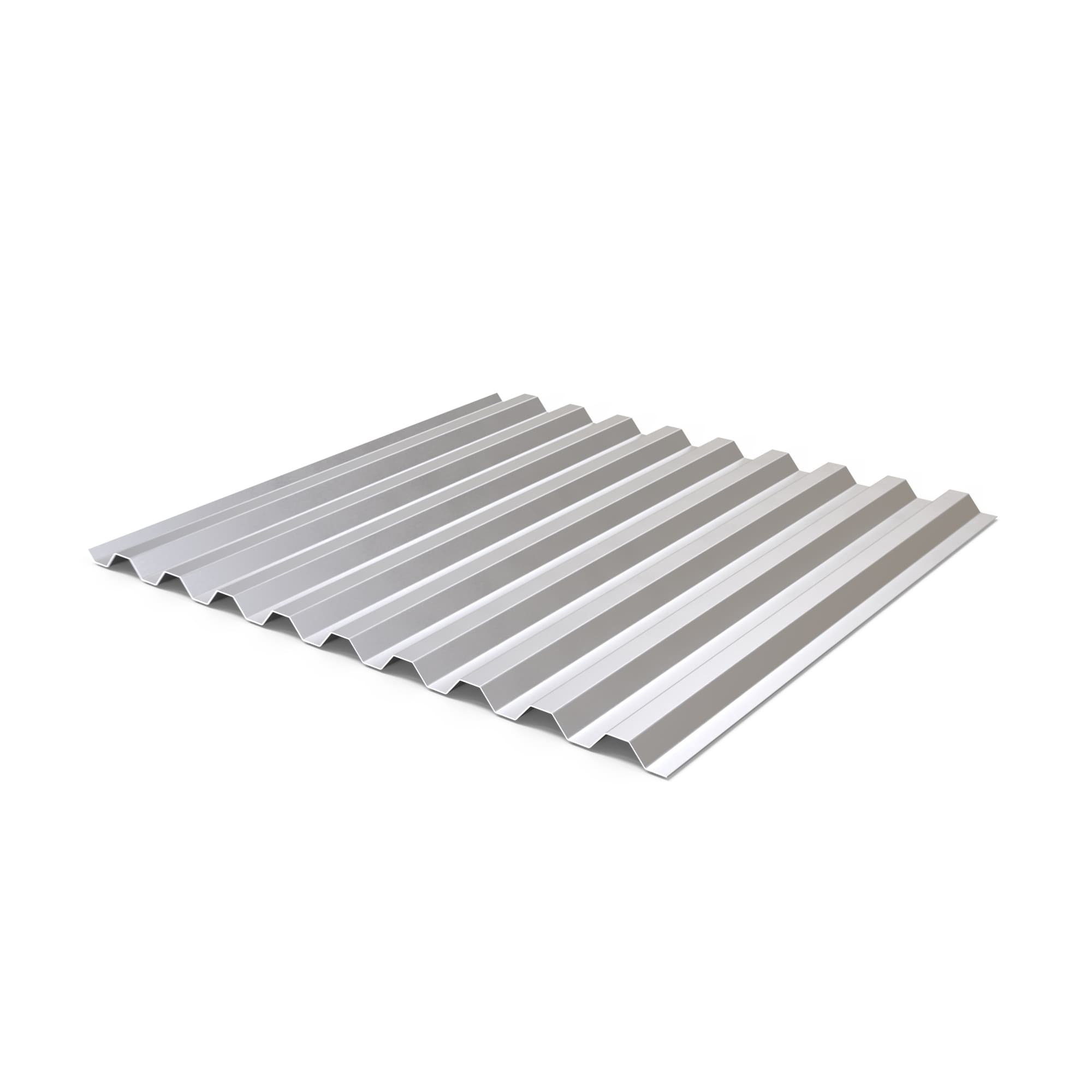

1" Type HD Form Deck
Heavy-duty concrete formwork in floors and roofs is the purpose of Type HD Form Deck, which delivers strong support and durability. Gauges run from 26 GA to 20 GA, so it copes with greater loads and longer spans. SDI and ANSI standards apply, and galvanized finishes such as G60 and G90 improve corrosion resistance for Naples projects.
Dimensions and profile

| Property | Dimension |
|---|---|
| Profile Depth | 1 inch |
| Coverage Width | 36 inches |
| Rib Spacing | 4 inches (center to center) |
| Rib Height | 1 inch |
Type HD Form Deck has a 1-inch rib depth and a standard 36-inch coverage width, a fit for heavy-duty concrete formwork in floors and roofs. Ribs are spaced 4 inches (center to center), and the overall material width of 39 inches gives secure overlaps and solid concrete support. The profile carries greater loads and holds down material costs, which helps on demanding construction projects.
Gauges and thicknesses
| Gauge | Bare steel thickness (in) | Weight (lbs/sq ft) | Typical applications |
|---|---|---|---|
| 26 | 0.0179 | 0.75 | Light-duty concrete formwork, low-load floors. |
| 24 | 0.0239 | 1.0 | Standard floors, light industrial applications. |
| 22 | 0.0299 | 1.25 | Medium-duty floors, parking structures. |
| 20 | 0.0359 | 1.5 | Heavy-duty formwork, bridges, industrial slabs. |
Type HD Form Deck is made in gauges 26, 24, 22, and 20. Standard concrete slabs and moderate spans are handled economically by the lighter gauges (26 and 24). The heavier gauges (22 and 20) offer superior strength over longer spans and under heavier concrete loads, ideal for industrial floors, bridges, and parking structures.
Finishes and coatings
| Finish | Details |
|---|---|
| Galvanized G60 | Zinc coating of 0.6 oz/ft². Recommended for general environments. |
| Galvanized G90 | Zinc coating of 0.9 oz/ft². Ideal for highly corrosive environments. |
| Prime-Painted | Provides a base coat for additional protection or paint adhesion. |
| Bare Steel | Unfinished; typically for indoor use or controlled environments. |
For durability and long-term performance, Type HD Form Deck is supplied in galvanized (G60 and G90) and prime-painted finishes. Galvanizing gives excellent corrosion resistance, and G90 has a thicker zinc layer to protect in high-moisture or chemical environments. The prime-painted finish adds a protective base coat. G60 and G90 finishes conform to ASTM A653 specifications.
Material and finish options
Type HD Deck is high-strength 80 KSI steel. Order it with a corrosion-resistant galvanized finish that meets SDI/ANSI standards, with a choice of painted finishes for tailored aesthetics, or as bare steel for custom applications. Each finish is intended to extend durability and sustain performance in demanding environments.
Custom lengths
Pick deck lengths from 6′-0″ for smaller projects to 40′-0″ for large spans. We work to your specified dimensions, with the aim of an optimal fit and minimal waste.
1" Type HD Form Deck features
Heavy-duty load support, efficient concrete bonding, and enhanced durability define our 1" Type HD Form Deck, a strong pick for industrial floors, bridge formwork, and demanding structural applications in Naples.
Heavy-Duty Load Support
Type HD Form Deck is engineered for higher concrete loads, which makes it right for projects needing superior strength and stability.
Efficient Concrete Bonding
Its deep profile accommodates thicker concrete slabs, giving better load distribution and lasting performance.
Galvanized or Prime-Painted Finish
Select G60/G90 galvanized or prime-painted finishes for added durability and corrosion resistance.
Cost-Effective Formwork Solution
Parking structures, bridge formwork, and industrial floors are typical heavy-duty uses, and the deck adapts easily to complex construction needs.
Compliance with SDI Standards
Steel Deck Institute (SDI) and ANSI guidelines are met, ensuring quality and code compliance.
Versatile Gauge Options
From 26 GA to 20 GA, there is flexibility to meet specific load requirements and stay durable.
Installation and connections
Installation practices
- Run the deck perpendicular to the supports.
- At each support, secure the deck with pins, powder-actuated fasteners, or TEK screws.
- Overlap the sidelaps and fasten with screws at 12" o.c.
Fasteners and attachments
- Pins or powder-actuated fasteners secure the deck to supports
- #10 TEK screws at 6" o.c. on edges and 12" o.c. for sidelaps
- Sidelaps fastened using button punching or #10 TEK screws at 12" o.c.
Confirm the profile, gauge, span, loads and connections against your project drawings and the applicable product load tables before ordering.
Applications

Heavy Industrial Floor Systems
High-load equipment and machinery on heavy industrial floors get strong support from Type HD Form Deck. The durable design performs over the long term in demanding industrial settings.

Bridge and Highway Formwork
Bridge and highway construction commonly uses Type HD Form Deck as permanent formwork, where it supports heavy concrete loads during placement and adds lasting strength.
Standards and product documentation
Type HD Form Deck is produced to SDI (Steel Deck Institute) specifications, which keeps design and performance standards high.
1" Type HD Form Deck questions
What is the main purpose of Type HD Form Deck?
It is permanent formwork for heavy-duty concrete slabs, such as industrial floors, bridges, and infrastructure projects. Wet concrete rests on it during placement, and it stays in place after curing.
What gauge choices does Type HD Form Deck offer?
26 GA, 24 GA, 22 GA, and 20 GA, so you can match various load capacities and project needs.
Will Type HD Form Deck need temporary shoring?
Possibly. Temporary shoring may be required during installation to bear the deck and wet concrete weight until the slab fully cures.
Which fastening methods are recommended for Type HD Form Deck?
Pins, powder-actuated fasteners, or TEK screws are typical. Sidelaps are secured with button punching or screws at 12" o.c.
Can Type HD Form Deck be cut to custom lengths?
Yes, anywhere from 6'-0" to 40'-0". Waste stays minimal and each project gets a precise fit.
Type BI Inverted Form Deck
Exposed-soffit architectural ceilings call for Type B Inverted Form Deck, which also acts as permanent formwork for concrete slabs in floor and roof systems. Gauges range from 22 GA through 16 GA. Schools, offices, and commercial facilities in Naples are among its common uses.
Dimensions and profile

| Property | Dimension |
|---|---|
| Profile Depth | 1.5 inches |
| Coverage Width | 36 inches |
| Rib Spacing | 6 inches (center to center) |
| Rib Height | 1.5 inches |
Type BI Inverted Form Deck has a 1.5-inch rib depth and a standard 36-inch coverage width. Ribs face upward when it is installed, so a smooth, flat soffit shows below and works as an architectural ceiling with no added finish. Rib spacing of 6 inches (center to center) keeps the structure sound and still accommodates concrete placement.
Gauges and thicknesses
| Gauge | Bare steel thickness (in) | Weight (lbs/sq ft) | Typical applications |
|---|---|---|---|
| 22 | 0.0299 | 1.25 | Light-duty floors and ceilings. |
| 20 | 0.0358 | 1.5 | Standard commercial floor systems. |
| 18 | 0.0474 | 2.6 | Heavy-duty applications, parking structures. |
| 16 | 0.0598 | 3.0 | Heavy load industrial floors. |
Gauges 22, 20, 18, and 16 are offered for Type BI Inverted Form Deck. For standard commercial work, the lighter gauges (22 and 20) are a good fit. Parking structures and heavy industrial floor systems call for the added strength of gauges 18 and 16.
Finishes and coatings
| Finish | Details |
|---|---|
| Galvanized G60 | Zinc coating of 0.6 oz/ft². Recommended for general environments. |
| Galvanized G90 | Zinc coating of 0.9 oz/ft². Ideal for highly corrosive environments. |
| Prime-Painted | Provides a base coat for additional protection or paint adhesion. |
| Bare Steel | Unfinished; typically for indoor use or controlled environments. |
Type BI Inverted Form Deck is offered with galvanized (G60 and G90) and prime-painted finishes. The galvanized coatings protect against corrosion, with G90 extending that protection to highly corrosive environments. G60 and G90 finishes conform to ASTM A653 specifications.
Material and finish options
Specify Type BI Inverted Form Deck in high-strength steel with a corrosion-resistant galvanized finish that meets ANSI/SDI standards. Painted finishes are available for tailored aesthetics, and bare steel is available for custom applications. Durability and steady performance are the goals behind each finish.
Custom lengths
We cut deck from 6′-0″ for smaller projects up to 40′-0″ for larger constructions. Our custom length service follows your requirements to deliver an optimal fit with minimal waste, whatever the size of the job in Naples.
Type BI Inverted Form Deck features
Type BI Inverted Form Deck brings high structural strength, efficient formwork, and corrosion-resistant finishes to architectural ceilings, multi-level parking structures, and commercial floor systems that require exposed soffits.
High Structural Strength
It carries concrete and live loads, and the underside becomes an architecturally finished exposed ceiling.
Efficient Formwork
Because the deck stays in place as permanent formwork for concrete slabs, labor and construction time drop and temporary forms never need removing.
Corrosion Resistance
For lasting corrosion resistance in commercial environments, choose G60/G90 galvanized or prime-painted finishes.
Cost-Effective
By combining formwork with structural support, it lowers material and labor costs where ceilings are left exposed.
Compliance with Standards
Conforms to SDI and ANSI guidelines for quality and code compliance in all applications.
Versatile Options
Gauges from 22 to 16 GA and multiple finishes are available to meet varying load and architectural needs.
Installation and connections
Installation practices
- Set the deck perpendicular to the supports with the ribs pointing upward.
- Use pins, powder-actuated fasteners, or TEK screws to fasten at each support.
- Lap sidelaps and secure them at 12" o.c. with button punching or screws.
Fasteners and attachments
- Pins or powder-actuated fasteners secure the deck to supports
- #10 TEK screws at 6" o.c. on edges
- Sidelaps attached through button punching or #10 TEK screws at 12" o.c.
Confirm the profile, gauge, span, loads and connections against your project drawings and the applicable product load tables before ordering.
Applications

Industrial Flooring with Exposed Ceiling
Strong support for industrial floor systems plus an architecturally finished exposed soffit, which suits schools, offices, and civic buildings.

Multi-Level Parking Structures
A frequent choice for parking garages, giving permanent formwork and a clean exposed underside that cuts finishing costs.
Standards and product documentation
SDI (Steel Deck Institute) specifications and ANSI standards apply to Type BI Inverted Form Deck, which supports high standards of design and performance.
Type BI Inverted Form Deck questions
Which projects use Type BI inverted form deck?
It appears in architectural ceiling systems, multi-level parking structures, schools, offices, and facilities needing an attractive exposed soffit.
What is different about installing Type BI?
The deck is installed inverted, ribs up, so the flat side faces down as a finished ceiling surface and needs no added finishing materials.
What gauge options exist?
Gauges 22, 20, 18, and 16 GA cover a range of structural requirements.
What finish options are there?
Corrosion resistance comes from G60 and G90 galvanized finishes, and prime-painted finishes add protection.
Does Type BI come in custom lengths for Naples jobs?
Yes, from 6'-0" to 40'-0", so each project gets a precise fit with minimal waste.
Ordering made simple
Metal Form Decks for Naples construction
Start with your plans or a takeoff. We review the profile, gauge, quantities and lengths, help with shop drawings when you need them, and come back with pricing and a delivery plan for Naples.
Send your project requirementsHelpful details for an accurate quote
- Product profile or series, dimensions, gauge and specified finish.
- Required quantities, sheet or member lengths, and project drawings.
- Project address in Naples, delivery date and site access requirements.
- Any specified load tables, connection details or supporting documentation.
How We Work
We Guide You Through the Process
From manufacturing to delivery, we ensure precision, efficiency, and compliance with industry standards.
Takeoff and Shop Drawings Services
We provide specialized takeoff services for accurate quotations and detailed shop drawings to produce optimized cutting lists for sheets, ensuring efficient execution and waste-free outcomes in your projects.
Manufacture
We manufacture metal decks to SDI and ANSI standards, ensuring strength, durability, and compliance. We provide custom lengths and high-precision fabrication for optimized performance in roof, floor, and form deck applications.
Swift Deliveries & Nationwide Reach
While based in South Florida, we serve clients nationwide, ensuring quality, efficiency, and timely deliveries across the U.S., reflecting our commitment to excellence without boundaries.
Frequently Asked Questions
Do you supply form deck in Naples?
Yes. We deliver form deck to Naples with same-day or next-day service. Call 305-760-2575 for availability.
What is the difference between form deck and composite deck?
Form deck acts as temporary or permanent formwork the concrete carries the load after curing. Composite deck bonds structurally with the concrete to share load permanently.
What is form deck for?
Form deck is temporary or permanent structural formwork for concrete slabs. It carries the weight of wet concrete during pouring and curing, giving floor and roof slabs a stable base.
How does form deck compare with composite deck?
Composite deck bonds with concrete and acts as a structural element in the finished slab. Form deck is only formwork, so after curing the concrete slab carries the load on its own.
What benefits does form deck bring to multi-level construction?
It speeds up construction by removing the need for temporary wood forms and cuts material waste. It is also a consistent, lightweight formwork system that can stay in place after the concrete cures.
Which gauges and finishes does form deck come in?
Form deck is offered in gauges 16 to 28, with G60 and G90 galvanized finishes for corrosion resistance. Custom lengths of 6 to 40 feet are available.
